C&C 24
Built by C&C Yachts
• Designed by C&C
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1975
Dimensions
Length Overall (LOA):
7.32 m
Length Waterline (LWL):
5.94 m
Beam:
2.69 m
Draft (Max):
1.22 m
Max Height:
9.91 m
Weight & Ballast
Displacement:
1,451 kg
Ballast:
476 kg
Sail Plan
Foresail Area:
14.14 m²
Mainsail Area:
9.28 m²
Total Sail Area (calculated):
23.42 m²
Sail Area (reported):
23.41 m²
I (Fore Triangle Height):
8.84 m
J (Fore Triangle Base):
3.20 m
P (Mainsail Hoist):
7.16 m
E (Boom Length):
2.59 m
Engine & Systems
Water Capacity:
23 L
Performance Ratios
Hull Speed:
5.92 knots
SA/Displacement (Calculated):
18.27
SA/Displacement (Reported):
18.62
Ballast/Disp Ratio:
32.81%
Displacement/Length:
192.66
Comfort Ratio:
13.07
Capsize Screening:
2.39
S-Number:
2.99
Notes

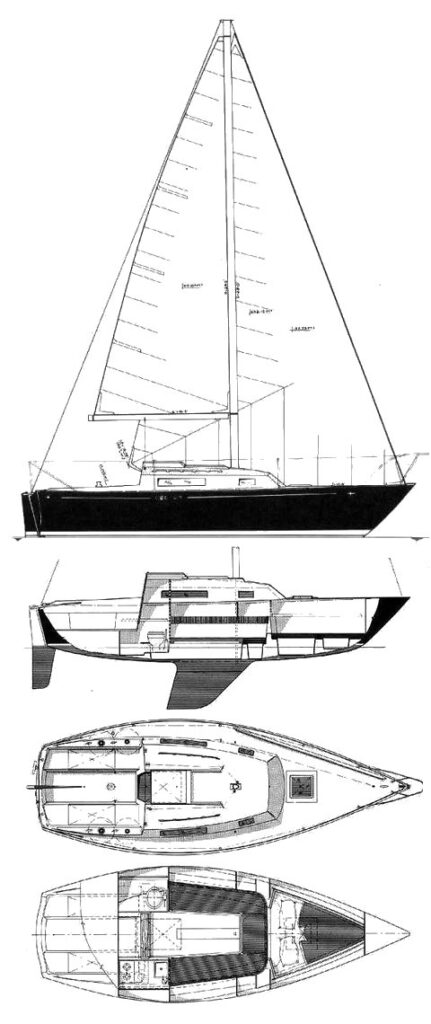

Photo courtesy of Adam Hunt.
