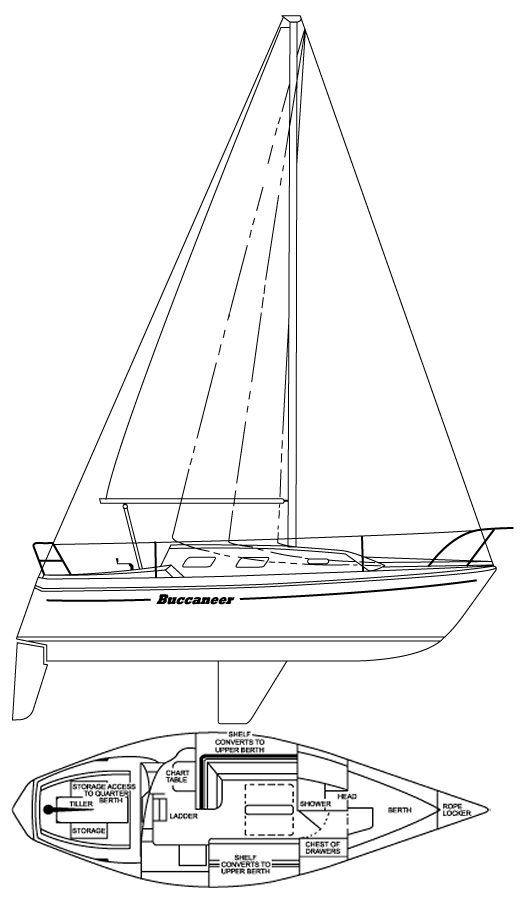

BUCCANEER 335
Built by Bayliner Marine Corp (USA)
• Designed by D. Peterson (unauthorized)/Bayliner
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1978
Dimensions
Length Overall (LOA):
10.01 m
Length Waterline (LWL):
8.08 m
Beam:
3.20 m
Draft (Max):
1.71 m
Headroom:
1.83 m
Max Height:
14.23 m
Weight & Ballast
Displacement:
4,218 kg
Ballast:
2,087 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
27.62 m²
Mainsail Area:
18.25 m²
Total Sail Area (calculated):
45.87 m²
Sail Area (reported):
45.80 m²
I (Fore Triangle Height):
13.11 m
J (Fore Triangle Base):
4.22 m
P (Mainsail Hoist):
11.68 m
E (Boom Length):
3.12 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Fuel Capacity:
42 L
Water Capacity:
87 L
Performance Ratios
Hull Speed:
6.90 knots
SA/Displacement (Calculated):
17.57
SA/Displacement (Reported):
17.90
Ballast/Disp Ratio:
49.46%
Displacement/Length:
223.10
Comfort Ratio:
22.08
Capsize Screening:
2.00
S-Number:
2.54
Notes
Tooling for the hull probably the same as that used for CHASER 33 (Peterson 3/4 ton) but with modifications including an entirely different deck, keel and rudder.
