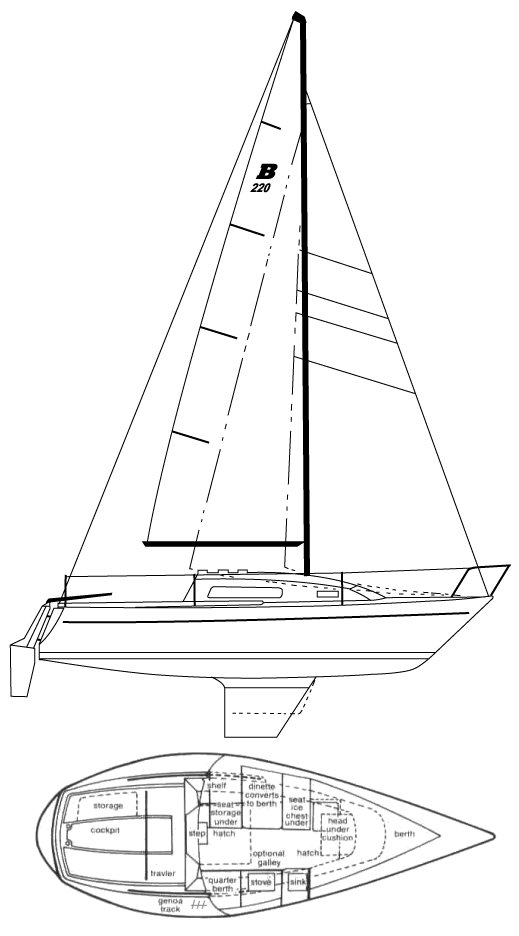

BUCCANEER 220
Built by Bayliner Marine Corp. (USA)
• Designed by Gary Mull
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1978
Dimensions
Length Overall (LOA):
6.71 m
Length Waterline (LWL):
5.87 m
Beam:
2.41 m
Draft (Max):
0.79 m
Headroom:
1.60 m
Max Height:
9.53 m
Weight & Ballast
Displacement:
1,111 kg
Ballast:
431 kg
Sail Plan
Foresail Area:
10.18 m²
Mainsail Area:
8.83 m²
Total Sail Area (calculated):
19.01 m²
Sail Area (reported):
18.77 m²
I (Fore Triangle Height):
7.59 m
J (Fore Triangle Base):
2.68 m
P (Mainsail Hoist):
7.62 m
E (Boom Length):
2.32 m
Engine & Systems
Performance Ratios
Hull Speed:
5.88 knots
SA/Displacement (Calculated):
17.71
SA/Displacement (Reported):
17.83
Ballast/Disp Ratio:
38.78%
Displacement/Length:
153.33
Comfort Ratio:
11.98
Capsize Screening:
2.35
S-Number:
3.47
Notes
Similar to the US 22. Derived from the RANGER 22.
