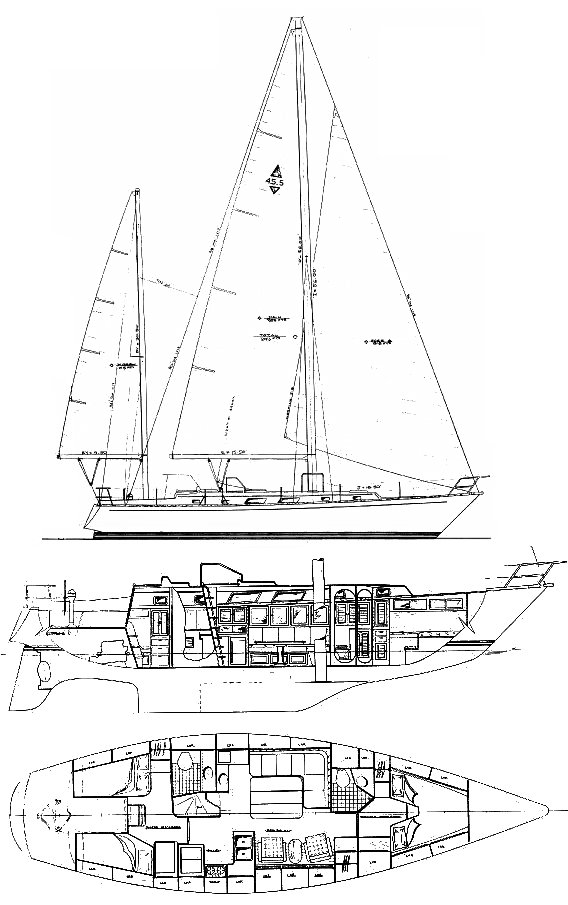

BRISTOL 45.5
Built by Bristol Yachts Inc. (USA)
• Designed by Ted Hood
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
Construction:
FG w/balsa cored deck
First Built:
1979
Last Built:
1989
Dimensions
Length Overall (LOA):
13.79 m
Length Waterline (LWL):
11.35 m
Beam:
4.01 m
Draft (Max):
3.35 m
Draft (Min):
1.50 m
Max Height:
19.35 m
Weight & Ballast
Displacement:
15,722 kg
Ballast:
6,804 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
49.78 m²
Mainsail Area:
42.06 m²
Total Sail Area (calculated):
91.84 m²
Sail Area (reported):
91.79 m²
I (Fore Triangle Height):
17.37 m
J (Fore Triangle Base):
5.73 m
P (Mainsail Hoist):
15.33 m
E (Boom Length):
5.49 m
Engine & Systems
Engine Make:
Perkins
Engine Type:
Diesel
Engine Model:
4-236
Fuel Capacity:
379 L
Water Capacity:
681 L
Performance Ratios
Hull Speed:
8.18 knots
SA/Displacement (Calculated):
14.63
SA/Displacement (Reported):
14.93
Ballast/Disp Ratio:
43.28%
Displacement/Length:
299.37
Comfort Ratio:
43.66
Capsize Screening:
1.62
S-Number:
1.59
Notes
Sloop or ketch.
