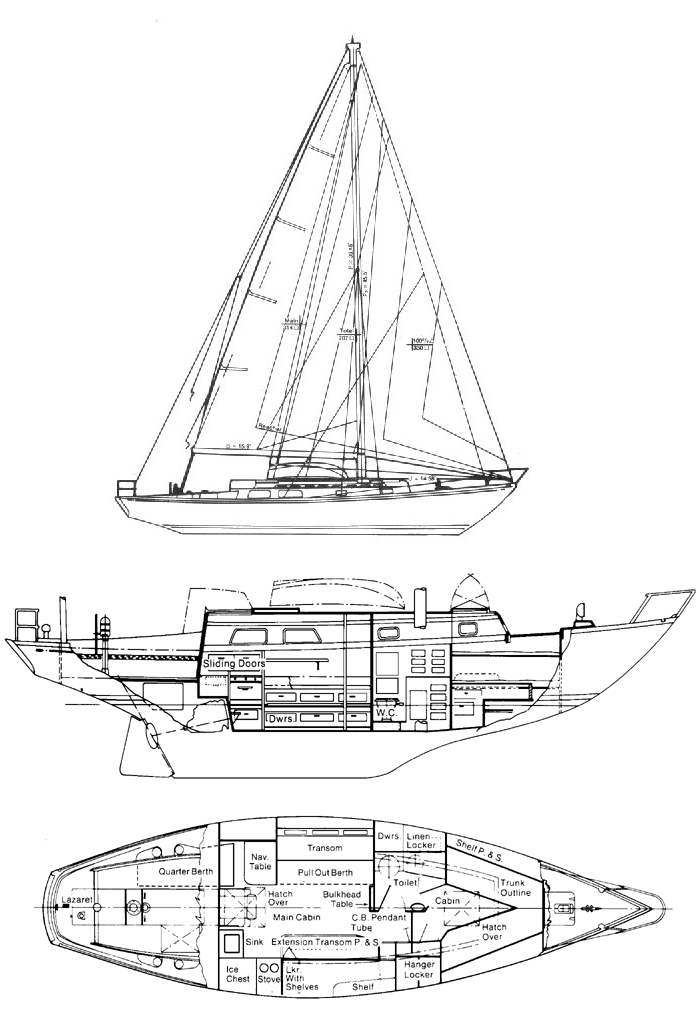

BRISTOL 40
Built by Bristol Yachts Inc. (USA)
• Designed by Ted Hood
General Information
Hull Type:
Modified Full Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1970
Last Built:
1986
Number Built:
149
Dimensions
Length Overall (LOA):
12.24 m
Length Waterline (LWL):
8.39 m
Beam:
3.28 m
Draft (Max):
1.64 m
Weight & Ballast
Displacement:
7,974 kg
Ballast:
2,948 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
30.82 m²
Mainsail Area:
29.32 m²
Total Sail Area (calculated):
60.14 m²
Sail Area (reported):
64.47 m²
I (Fore Triangle Height):
13.87 m
J (Fore Triangle Base):
4.44 m
P (Mainsail Hoist):
12.02 m
E (Boom Length):
4.88 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Gas
Engine Model:
Atomic 4
Engine Power:
30 HP
Fuel Capacity:
117 L
Water Capacity:
492 L
Performance Ratios
Hull Speed:
7.03 knots
SA/Displacement (Calculated):
15.07
SA/Displacement (Reported):
16.49
Ballast/Disp Ratio:
36.97%
Displacement/Length:
375.73
Comfort Ratio:
36.68
Capsize Screening:
1.66
S-Number:
1.16
Notes
Westerbeke Diesel was an option.
