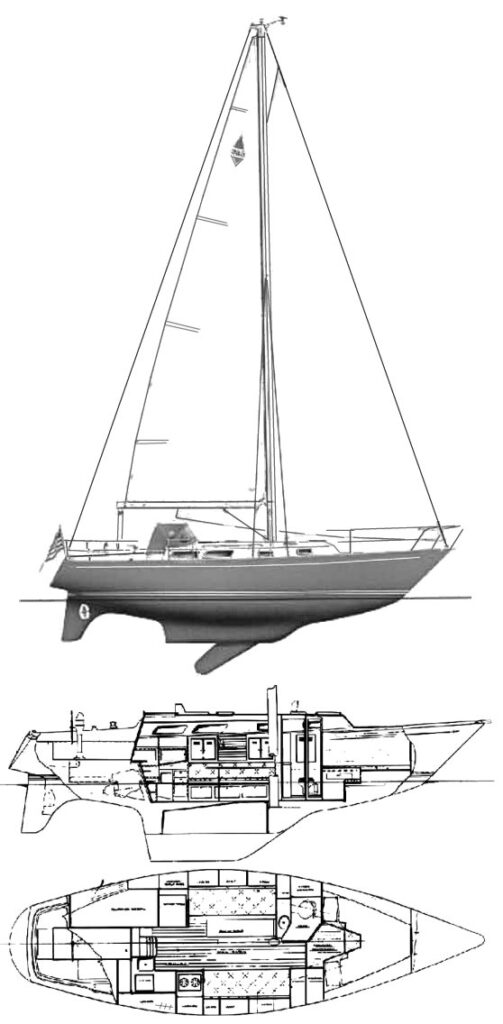

BRISTOL 35.5
Built by Bristol Yachts Inc. (USA)
• Designed by Ted Hood
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG/balsa cored deck
First Built:
1978
Last Built:
1996
Number Built:
183
Dimensions
Length Overall (LOA):
10.82 m
Length Waterline (LWL):
8.38 m
Beam:
3.30 m
Draft (Max):
1.75 m
Weight & Ballast
Displacement:
6,804 kg
Ballast:
2,948 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
32.75 m²
Mainsail Area:
23.19 m²
Total Sail Area (calculated):
55.94 m²
Sail Area (reported):
55.93 m²
I (Fore Triangle Height):
14.33 m
J (Fore Triangle Base):
4.57 m
P (Mainsail Hoist):
12.42 m
E (Boom Length):
3.73 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
22 HP
Fuel Capacity:
117 L
Water Capacity:
379 L
Performance Ratios
Hull Speed:
7.03 knots
SA/Displacement (Calculated):
15.58
SA/Displacement (Reported):
15.89
Ballast/Disp Ratio:
43.33%
Displacement/Length:
321.99
Comfort Ratio:
32.47
Capsize Screening:
1.76
S-Number:
1.51
Notes
Keel/CB version also available (sometimes referred to as BRISTOL 35.5C).
