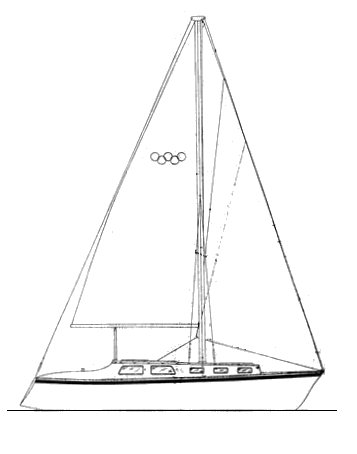

YORKTOWN 35
Built by Yorktown Marine Corp (USA)
• Designed by H. McCune
General Information
Hull Type:
Fin Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1974
Dimensions
Length Overall (LOA):
10.67 m
Length Waterline (LWL):
9.14 m
Beam:
3.51 m
Draft (Max):
1.83 m
Headroom:
1.91 m
Weight & Ballast
Displacement:
7,257 kg
Ballast:
3,175 kg
Sail Plan
Foresail Area:
23.11 m²
Mainsail Area:
23.24 m²
Total Sail Area (calculated):
46.35 m²
Sail Area (reported):
46.45 m²
I (Fore Triangle Height):
11.66 m
J (Fore Triangle Base):
3.96 m
P (Mainsail Hoist):
10.52 m
E (Boom Length):
4.42 m
Engine & Systems
Engine Make:
Perkins
Engine Type:
Diesel
Engine Model:
4-1076
Fuel Capacity:
102 L
Water Capacity:
151 L
Performance Ratios
Hull Speed:
7.34 knots
SA/Displacement (Calculated):
12.37
SA/Displacement (Reported):
12.65
Ballast/Disp Ratio:
43.75%
Displacement/Length:
264.55
Comfort Ratio:
30.35
Capsize Screening:
1.83
S-Number:
1.61
Notes
Several different versions were available including flush deck and center cockpit models.
