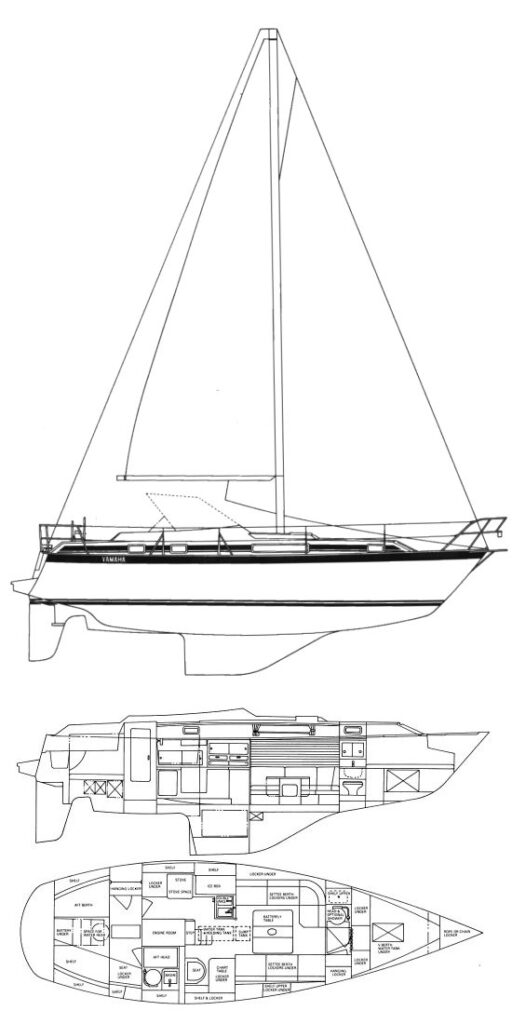

YAMAHA 35CS
Built by Yamaha (JAP)
• Designed by Yamaha
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1980
Dimensions
Length Overall (LOA):
10.74 m
Length Waterline (LWL):
8.00 m
Beam:
3.35 m
Weight & Ballast
Displacement:
6,101 kg
Ballast:
2,600 kg
Sail Plan
Foresail Area:
26.99 m²
Mainsail Area:
16.76 m²
Total Sail Area (calculated):
43.75 m²
Sail Area (reported):
43.76 m²
I (Fore Triangle Height):
11.89 m
J (Fore Triangle Base):
4.54 m
P (Mainsail Hoist):
10.00 m
E (Boom Length):
3.35 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
3QM
Fuel Capacity:
197 L
Water Capacity:
220 L
Performance Ratios
Hull Speed:
6.87 knots
SA/Displacement (Calculated):
13.10
SA/Displacement (Reported):
13.37
Ballast/Disp Ratio:
42.62%
Displacement/Length:
331.96
Comfort Ratio:
29.45
Capsize Screening:
1.85
S-Number:
1.26
