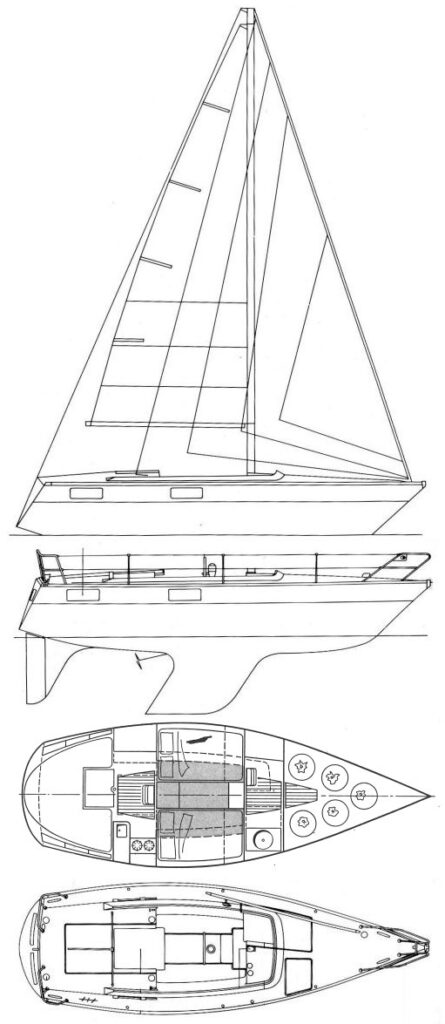

YAMAHA 29
Built by Yamaha Motor Co. Ltd. (JAP)
• Designed by Groupe Finot
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1975
Number Built:
55
Dimensions
Length Overall (LOA):
8.70 m
Length Waterline (LWL):
6.87 m
Beam:
3.05 m
Draft (Max):
1.50 m
Weight & Ballast
Displacement:
2,900 kg
Ballast:
1,040 kg
Sail Plan
Foresail Area:
18.01 m²
Mainsail Area:
14.93 m²
Total Sail Area (calculated):
32.94 m²
Sail Area (reported):
32.98 m²
I (Fore Triangle Height):
10.60 m
J (Fore Triangle Base):
3.40 m
P (Mainsail Hoist):
8.94 m
E (Boom Length):
3.34 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
12 HP
Performance Ratios
Hull Speed:
6.36 knots
SA/Displacement (Calculated):
16.20
SA/Displacement (Reported):
16.54
Ballast/Disp Ratio:
35.87%
Displacement/Length:
249.23
Comfort Ratio:
18.88
Capsize Screening:
2.16
S-Number:
2.14
