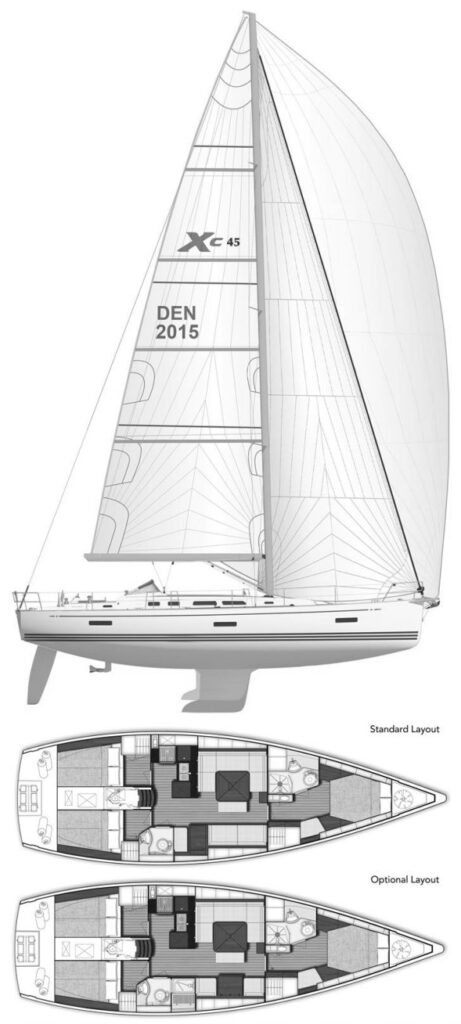

XC 45
Built by X Yachts (DEN)
• Designed by Jeppesen
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2008
Dimensions
Length Overall (LOA):
13.86 m
Length Waterline (LWL):
12.76 m
Beam:
4.32 m
Draft (Max):
2.20 m
Max Height:
21.64 m
Weight & Ballast
Displacement:
13,220 kg
Ballast:
5,740 kg
Ballast Type:
Lead
Sail Plan
Sail Area (reported):
111.95 m²
Engine & Systems
Engine Type:
Diesel
Engine Power:
75 HP
Fuel Capacity:
439 L
Water Capacity:
613 L
Performance Ratios
Hull Speed:
8.67 knots
SA/Displacement (Reported):
20.44
Ballast/Disp Ratio:
43.42%
Displacement/Length:
177.39
Comfort Ratio:
30.72
Capsize Screening:
1.85
Notes
Draft - shallow 1.80m/5.90'
