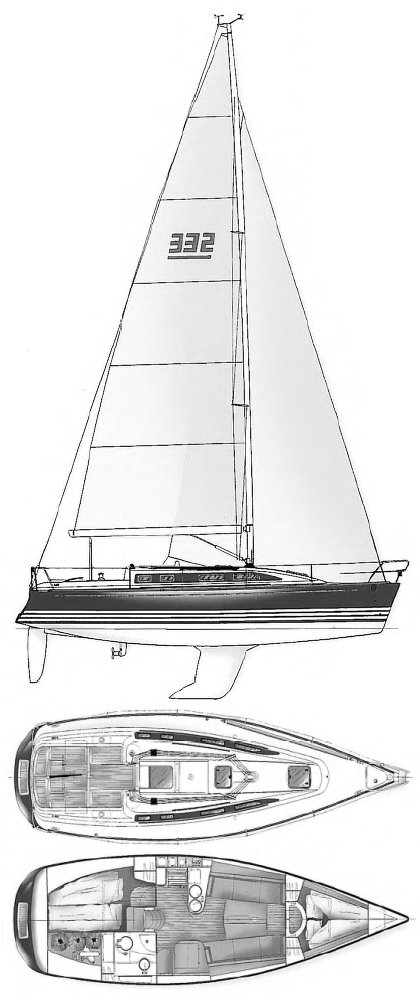

X-332
Built by X Yachts (DEN)
• Designed by Niels Jeppesen
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1994
Last Built:
2005
Number Built:
432
Dimensions
Length Overall (LOA):
10.06 m
Length Waterline (LWL):
8.81 m
Beam:
3.30 m
Draft (Max):
1.80 m
Weight & Ballast
Displacement:
4,350 kg
Ballast:
1,800 kg
Sail Plan
Foresail Area:
22.90 m²
Mainsail Area:
29.83 m²
Total Sail Area (calculated):
52.73 m²
Sail Area (reported):
52.77 m²
I (Fore Triangle Height):
12.83 m
J (Fore Triangle Base):
3.57 m
P (Mainsail Hoist):
13.14 m
E (Boom Length):
4.54 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
2GM20
Fuel Capacity:
53 L
Water Capacity:
121 L
Performance Ratios
Hull Speed:
7.21 knots
SA/Displacement (Calculated):
19.79
SA/Displacement (Reported):
20.20
Ballast/Disp Ratio:
41.38%
Displacement/Length:
177.00
Comfort Ratio:
20.59
Capsize Screening:
2.04
S-Number:
3.39
Notes
An X-332 SPORT model was also available.
