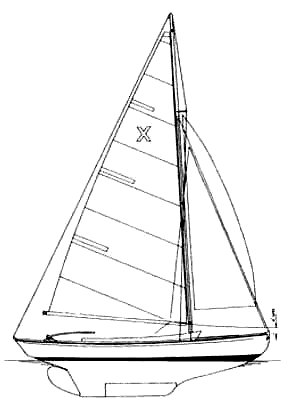

X ONE-DESIGN (UK)
Built by Woodnuts
• Designed by Alfred Westmacott
General Information
Hull Type:
Long Keel
Rigging Type:
Fractional Sloop
Construction:
Wood (Carvel)
First Built:
1909
Dimensions
Length Overall (LOA):
6.30 m
Length Waterline (LWL):
5.21 m
Beam:
1.80 m
Draft (Max):
0.91 m
Weight & Ballast
Displacement:
1,304 kg
Ballast:
660 kg
Ballast Type:
Iron
Sail Plan
Mainsail Area:
12.69 m²
Total Sail Area (calculated):
12.69 m²
Sail Area (reported):
17.65 m²
P (Mainsail Hoist):
7.24 m
E (Boom Length):
3.51 m
Engine & Systems
Performance Ratios
Hull Speed:
5.54 knots
SA/Displacement (Calculated):
10.63
SA/Displacement (Reported):
15.07
Ballast/Disp Ratio:
50.61%
Displacement/Length:
257.59
Comfort Ratio:
22.88
Capsize Screening:
1.67
S-Number:
1.43
Notes
(From class association website.)
