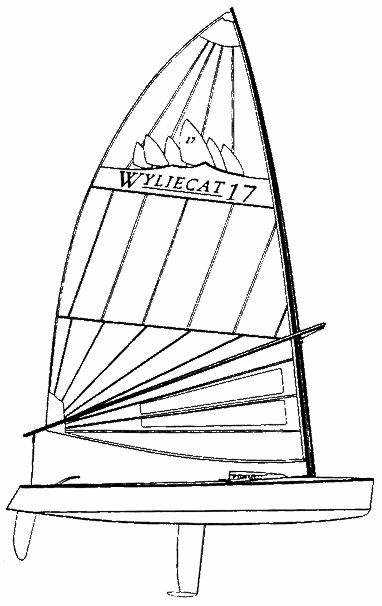

WYLIECAT 17
Built by Wyliecat (USA)
• Designed by Thomas Wylie
General Information
Hull Type:
Lifting Keel
Rigging Type:
Cat (unstayed)
Construction:
FG
First Built:
1999
Dimensions
Length Overall (LOA):
5.33 m
Length Waterline (LWL):
4.82 m
Beam:
1.85 m
Draft (Max):
1.07 m
Weight & Ballast
Displacement:
313 kg
Ballast:
181 kg
Sail Plan
Mainsail Area:
13.73 m²
Total Sail Area (calculated):
13.73 m²
Sail Area (reported):
18.30 m²
P (Mainsail Hoist):
7.11 m
E (Boom Length):
3.86 m
Engine & Systems
Performance Ratios
Hull Speed:
5.33 knots
SA/Displacement (Calculated):
29.78
SA/Displacement (Reported):
40.43
Ballast/Disp Ratio:
57.97%
Displacement/Length:
77.65
Comfort Ratio:
5.89
Capsize Screening:
2.75
S-Number:
6.87
