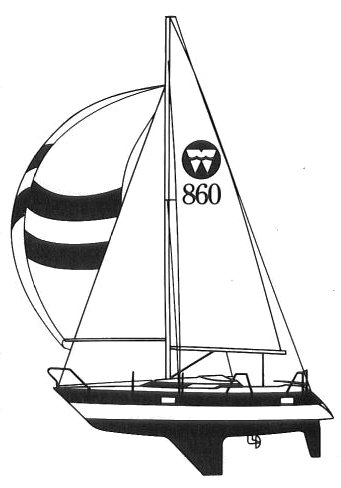

WINGA 860
Built by Winga Marine (SWE)
• Designed by Rolf Eliasson
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1979
Last Built:
1983
Number Built:
100
Dimensions
Length Overall (LOA):
8.62 m
Length Waterline (LWL):
6.48 m
Beam:
2.92 m
Draft (Max):
1.50 m
Weight & Ballast
Displacement:
2,585 kg
Ballast:
1,000 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
15.29 m²
Mainsail Area:
16.49 m²
Total Sail Area (calculated):
31.78 m²
Sail Area (reported):
31.68 m²
I (Fore Triangle Height):
9.40 m
J (Fore Triangle Base):
3.25 m
P (Mainsail Hoist):
9.70 m
E (Boom Length):
3.40 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
2001
Engine Power:
9.5 HP
Performance Ratios
Hull Speed:
6.18 knots
SA/Displacement (Calculated):
16.87
SA/Displacement (Reported):
17.15
Ballast/Disp Ratio:
38.68%
Displacement/Length:
265.19
Comfort Ratio:
18.59
Capsize Screening:
2.15
S-Number:
2.05
