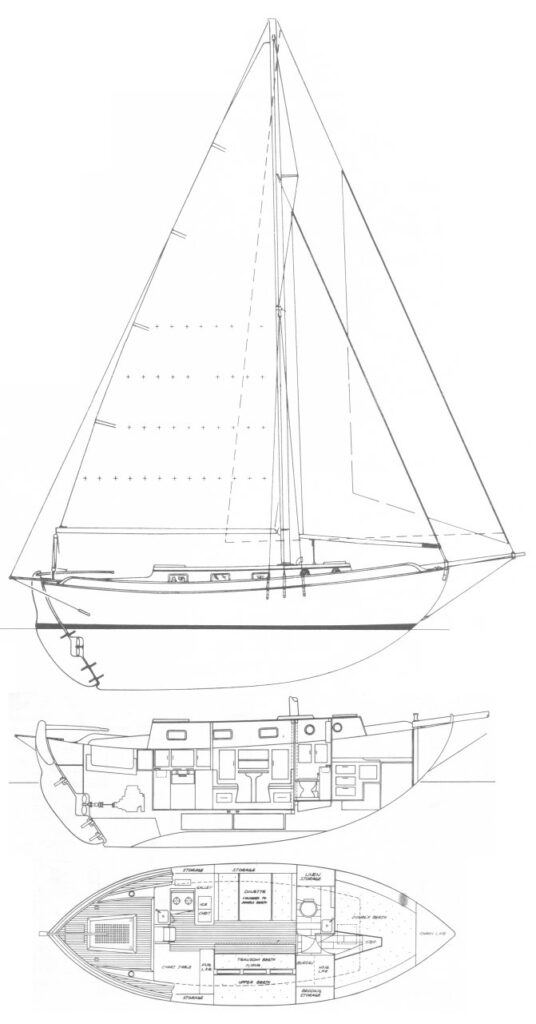

WESTSAIL 32
Built by Westsail Corp. (USA)
• Designed by William Crealock/W. Atkin
General Information
Hull Type:
Long keel w/trans. hung rudder
Rigging Type:
Cutter
Construction:
FG
First Built:
1971
Last Built:
1981
Number Built:
834
Dimensions
Length Overall (LOA):
9.75 m
Length Waterline (LWL):
8.38 m
Beam:
3.35 m
Draft (Max):
1.52 m
Headroom:
1.88 m
Weight & Ballast
Displacement:
8,845 kg
Ballast:
3,175 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
37.40 m²
Mainsail Area:
28.13 m²
Total Sail Area (calculated):
65.53 m²
Sail Area (reported):
69.96 m²
I (Fore Triangle Height):
13.41 m
J (Fore Triangle Base):
5.58 m
P (Mainsail Hoist):
11.66 m
E (Boom Length):
4.82 m
Engine & Systems
Engine Make:
Volvo or Perkins
Engine Type:
Diesel
Engine Power:
36 HP
Fuel Capacity:
159 L
Water Capacity:
303 L
Performance Ratios
Hull Speed:
7.03 knots
SA/Displacement (Calculated):
15.32
SA/Displacement (Reported):
16.69
Ballast/Disp Ratio:
35.90%
Displacement/Length:
418.59
Comfort Ratio:
42.85
Capsize Screening:
1.64
S-Number:
0.98
Notes
Said to be based on the THISTLE design from William Atkin and adapted for fiberglass by William Crealock for Kendall Yacht Corp.(1967). An earlier design, the KENDALL 32, has a flush deck. Westsail added the trunk cabin. Of the 834 hulls built, the first 31 being Kendall 32's, some 400 were sold as kits or bare hulls. As would be expected, rig dimensions, ballast material and other details vary.
