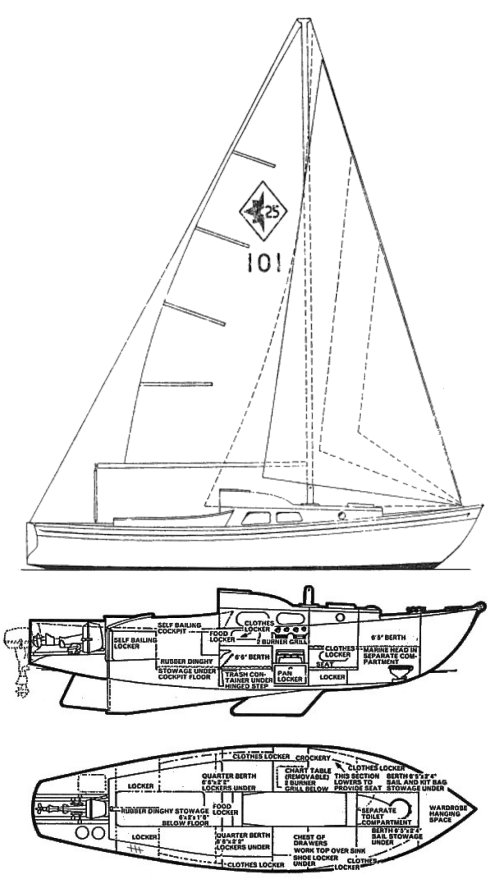

WESTERLY 25
Built by Westerly Marine Ltd. (UK)
• Designed by Denys A. Rayner
General Information
Hull Type:
Triple Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1964
Last Built:
1969
Dimensions
Length Overall (LOA):
7.64 m
Length Waterline (LWL):
6.40 m
Beam:
2.26 m
Draft (Max):
0.76 m
Weight & Ballast
Displacement:
1,814 kg
Ballast:
658 kg
Ballast Type:
Iron
Sail Plan
Sail Area (reported):
25.55 m²
Engine & Systems
Performance Ratios
Hull Speed:
6.14 knots
SA/Displacement (Reported):
17.51
Ballast/Disp Ratio:
36.25%
Displacement/Length:
192.82
Comfort Ratio:
19.26
Capsize Screening:
1.87
Notes
One of the earliest Westerly's, (based on the WESTERLY 22,) and designed by the company founder.
