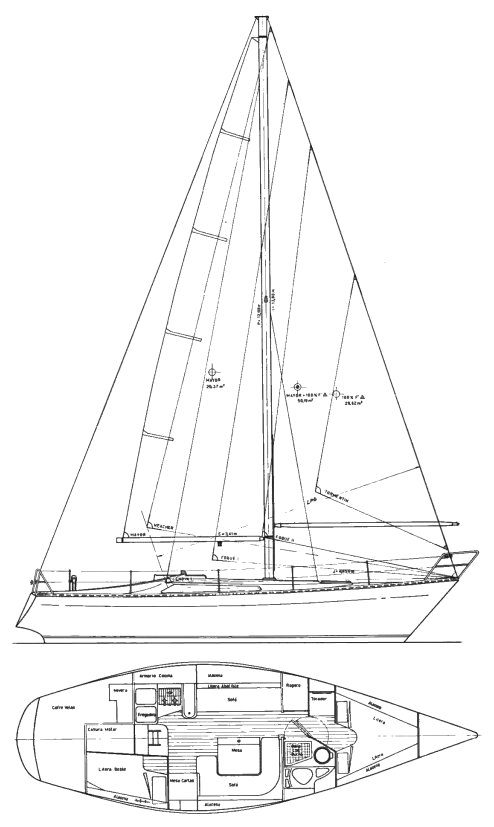

WEST WIND 35
Built by Nauta Astilleros (ESP)
• Designed by Angus Primrose
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1975
Dimensions
Length Overall (LOA):
10.69 m
Length Waterline (LWL):
8.67 m
Beam:
3.49 m
Draft (Max):
1.75 m
Weight & Ballast
Displacement:
5,500 kg
Ballast:
2,500 kg
Sail Plan
Foresail Area:
30.71 m²
Mainsail Area:
20.52 m²
Total Sail Area (calculated):
51.23 m²
Sail Area (reported):
51.19 m²
I (Fore Triangle Height):
13.80 m
J (Fore Triangle Base):
4.45 m
P (Mainsail Hoist):
12.03 m
E (Boom Length):
3.41 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Power:
28 HP
Fuel Capacity:
151 L
Water Capacity:
250 L
Performance Ratios
Hull Speed:
7.15 knots
SA/Displacement (Calculated):
16.44
SA/Displacement (Reported):
16.76
Ballast/Disp Ratio:
45.46%
Displacement/Length:
235.31
Comfort Ratio:
23.95
Capsize Screening:
2.00
S-Number:
2.30
Notes
Thanks to John Lynch for providing information on this yacht.
