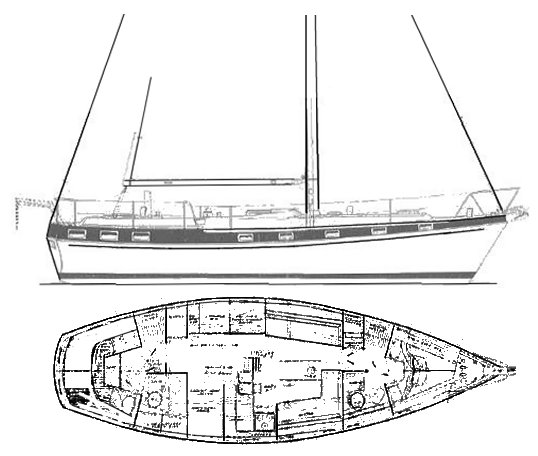

WEST INDIES 38 (MORGAN)
Built by Heritage Yacht Corp. (USA)
• Designed by Charles Morgan
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1976
Dimensions
Length Overall (LOA):
11.58 m
Length Waterline (LWL):
9.91 m
Beam:
3.66 m
Draft (Max):
1.22 m
Max Height:
16.46 m
Weight & Ballast
Displacement:
7,711 kg
Ballast:
3,402 kg
Sail Plan
Foresail Area:
35.50 m²
Mainsail Area:
29.17 m²
Total Sail Area (calculated):
64.67 m²
Sail Area (reported):
64.66 m²
I (Fore Triangle Height):
15.03 m
J (Fore Triangle Base):
4.72 m
P (Mainsail Hoist):
13.20 m
E (Boom Length):
4.42 m
Engine & Systems
Engine Make:
Perkins
Engine Type:
Diesel
Engine Model:
4-108
Fuel Capacity:
208 L
Water Capacity:
208 L
Performance Ratios
Hull Speed:
7.64 knots
SA/Displacement (Calculated):
16.57
SA/Displacement (Reported):
16.91
Ballast/Disp Ratio:
44.12%
Displacement/Length:
221.08
Comfort Ratio:
28.11
Capsize Screening:
1.87
S-Number:
2.46
Notes
Scaled down verson of MORGAN OI 41, from the same mold as the WEST INDIES 36 and with the same rig.
