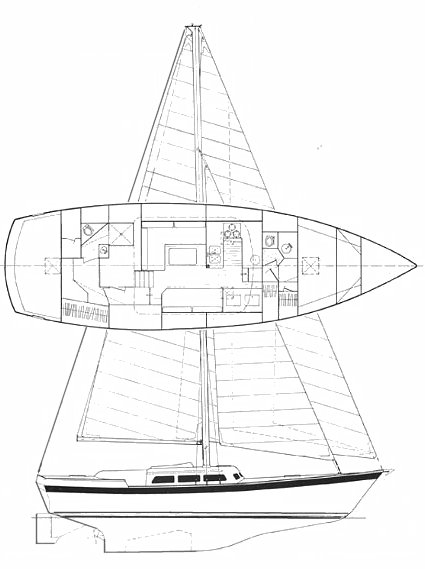

WELLINGTON 44
Built by Wellington Boats Inc. (USA)
• Designed by Bill Wellington
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Cutter
Construction:
FG
First Built:
1970
Dimensions
Length Overall (LOA):
13.41 m
Length Waterline (LWL):
11.35 m
Beam:
4.11 m
Draft (Max):
2.64 m
Draft (Min):
1.30 m
Weight & Ballast
Displacement:
12,701 kg
Ballast:
4,536 kg
Sail Plan
Foresail Area:
56.71 m²
Mainsail Area:
37.43 m²
Total Sail Area (calculated):
94.14 m²
Sail Area (reported):
90.12 m²
I (Fore Triangle Height):
17.07 m
J (Fore Triangle Base):
6.64 m
P (Mainsail Hoist):
15.54 m
E (Boom Length):
4.82 m
Engine & Systems
Engine Make:
Ford Lehman
Engine Type:
Diesel
Engine Model:
4D-254-4
Engine Power:
80 HP
Fuel Capacity:
662 L
Water Capacity:
662 L
Performance Ratios
Hull Speed:
8.18 knots
SA/Displacement (Calculated):
17.29
SA/Displacement (Reported):
16.90
Ballast/Disp Ratio:
35.71%
Displacement/Length:
241.84
Comfort Ratio:
34.42
Capsize Screening:
1.78
S-Number:
2.32
Notes
Also available as a ketch.
