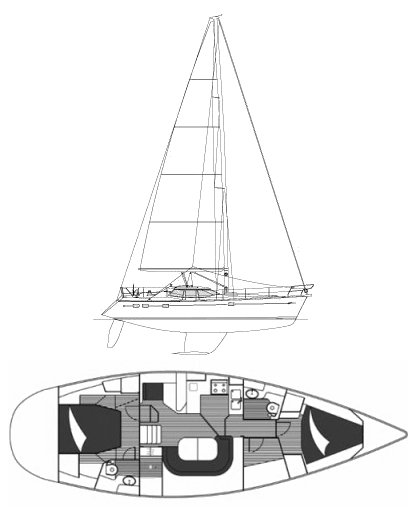

WAUQUIEZ PILOT SALOON 43
Built by Wauquiez (FRA)
• Designed by Ed Dubois
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1999
Last Built:
2004
Number Built:
48
Dimensions
Length Overall (LOA):
13.30 m
Length Waterline (LWL):
10.80 m
Beam:
4.20 m
Draft (Max):
2.10 m
Weight & Ballast
Displacement:
12,500 kg
Ballast:
4,500 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
43.11 m²
Mainsail Area:
42.07 m²
Total Sail Area (calculated):
85.18 m²
Sail Area (reported):
85.19 m²
I (Fore Triangle Height):
17.25 m
J (Fore Triangle Base):
5.00 m
P (Mainsail Hoist):
15.30 m
E (Boom Length):
5.50 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
4JH3-TE
Engine Power:
75 HP
Fuel Capacity:
401 L
Water Capacity:
598 L
Performance Ratios
Hull Speed:
7.98 knots
SA/Displacement (Calculated):
15.81
SA/Displacement (Reported):
16.15
Ballast/Disp Ratio:
36.00%
Displacement/Length:
276.62
Comfort Ratio:
34.17
Capsize Screening:
1.83
S-Number:
1.86
Notes
Hull length: 13.05m / 42.81ft
