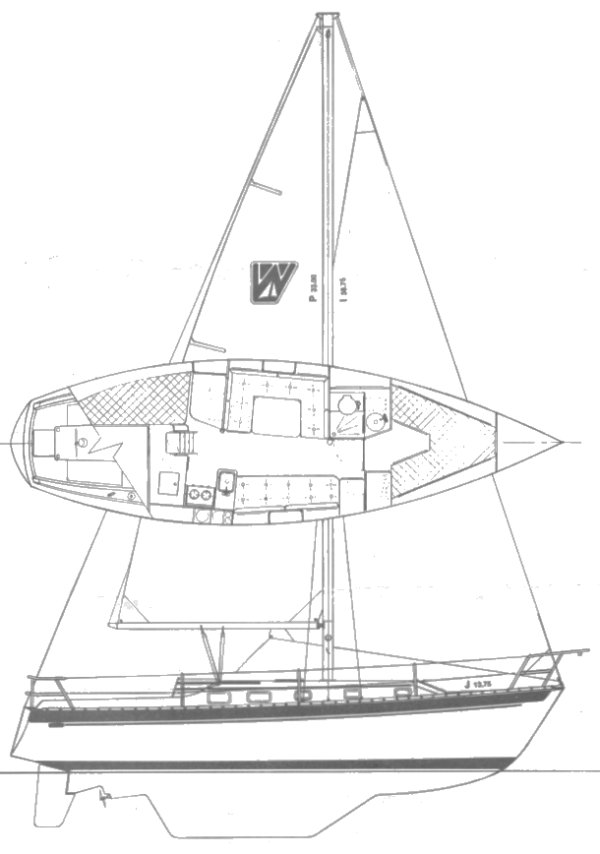

WATKINS 33
Built by Watkins Yachts Inc. (USA)
• Designed by W. Tripp/Watkins Yachts
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1984
Last Built:
1989
Number Built:
47
Dimensions
Length Overall (LOA):
10.08 m
Length Waterline (LWL):
8.10 m
Beam:
3.10 m
Draft (Max):
1.22 m
Weight & Ballast
Displacement:
5,080 kg
Ballast:
2,495 kg
Sail Plan
Foresail Area:
24.75 m²
Mainsail Area:
18.78 m²
Total Sail Area (calculated):
43.53 m²
Sail Area (reported):
43.57 m²
I (Fore Triangle Height):
11.81 m
J (Fore Triangle Base):
4.19 m
P (Mainsail Hoist):
10.06 m
E (Boom Length):
3.73 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Fuel Capacity:
114 L
Water Capacity:
227 L
Performance Ratios
Hull Speed:
6.91 knots
SA/Displacement (Calculated):
14.73
SA/Displacement (Reported):
15.04
Ballast/Disp Ratio:
49.11%
Displacement/Length:
266.26
Comfort Ratio:
27.59
Capsize Screening:
1.82
S-Number:
1.84
Notes
The WATKINS 33 is a modified version of the WATKINS 32 (which, in turn, derived from the COLUMBIA 32). The transom was changed from nearly vertical to a more reversed style as well as a number of changes to the interior.
