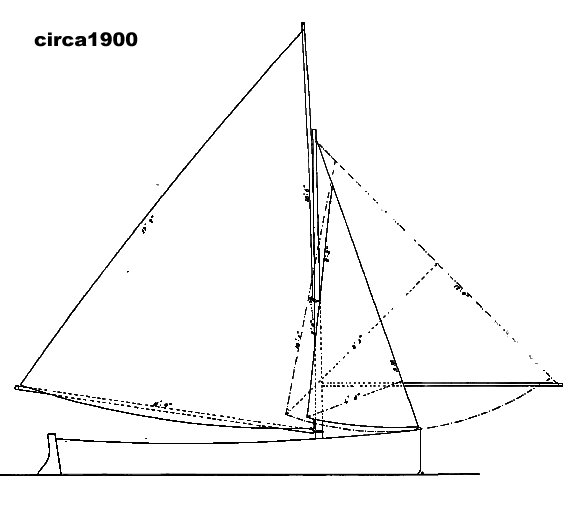

WATER WAG
Built by McKeown of Belfast (IRELAND)
• Designed by Thomas B. Middleton/J. E. Doyle
General Information
Hull Type:
Centerboard Dinghy
Rigging Type:
Gaffhead Sloop
Construction:
Wood (clinker)
First Built:
1887
Number Built:
44
Dimensions
Length Overall (LOA):
3.96 m
Beam:
1.47 m
Draft (Max):
0.51 m
Draft (Min):
0.15 m
Weight & Ballast
Displacement:
170 kg
Sail Plan
Sail Area (reported):
10.22 m²
Engine & Systems
Performance Ratios
SA/Displacement (Reported):
33.88
Capsize Screening:
2.68
Notes
Based on a prototype 'Cemiostama',(1878?), which in turn derived from an earlier Norwegian type.
