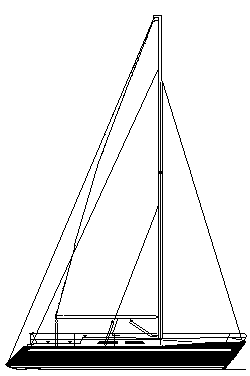

WASA 38
Built by Wasa Marin A.B. (SWE)
• Designed by Leif Ängermark
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1980
Dimensions
Length Overall (LOA):
11.37 m
Length Waterline (LWL):
8.69 m
Beam:
3.53 m
Draft (Max):
2.04 m
Weight & Ballast
Displacement:
4,990 kg
Ballast:
2,200 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
25.90 m²
Mainsail Area:
34.15 m²
Total Sail Area (calculated):
60.05 m²
Sail Area (reported):
60.02 m²
I (Fore Triangle Height):
12.90 m
J (Fore Triangle Base):
4.01 m
P (Mainsail Hoist):
13.94 m
E (Boom Length):
4.90 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
2030
Engine Power:
30 HP
Performance Ratios
Hull Speed:
7.15 knots
SA/Displacement (Calculated):
20.56
SA/Displacement (Reported):
20.97
Ballast/Disp Ratio:
44.09%
Displacement/Length:
212.13
Comfort Ratio:
20.91
Capsize Screening:
2.09
S-Number:
2.98
