WANDERER 30 (PEARSON)
Built by Pearson Yachts (USA)
• Designed by William Shaw
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1966
Last Built:
1971
Number Built:
177
Dimensions
Length Overall (LOA):
9.22 m
Length Waterline (LWL):
7.11 m
Beam:
2.84 m
Draft (Max):
2.13 m
Draft (Min):
1.07 m
Weight & Ballast
Displacement:
4,445 kg
Ballast:
1,724 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
18.95 m²
Mainsail Area:
20.16 m²
Total Sail Area (calculated):
39.11 m²
Sail Area (reported):
39.39 m²
I (Fore Triangle Height):
10.97 m
J (Fore Triangle Base):
3.45 m
P (Mainsail Hoist):
9.45 m
E (Boom Length):
4.27 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Gas
Engine Model:
Atomic 4
Engine Power:
30 HP
Fuel Capacity:
76 L
Water Capacity:
91 L
Performance Ratios
Hull Speed:
6.47 knots
SA/Displacement (Calculated):
14.47
SA/Displacement (Reported):
14.86
Ballast/Disp Ratio:
38.78%
Displacement/Length:
344.54
Comfort Ratio:
30.44
Capsize Screening:
1.75
S-Number:
1.29
Notes

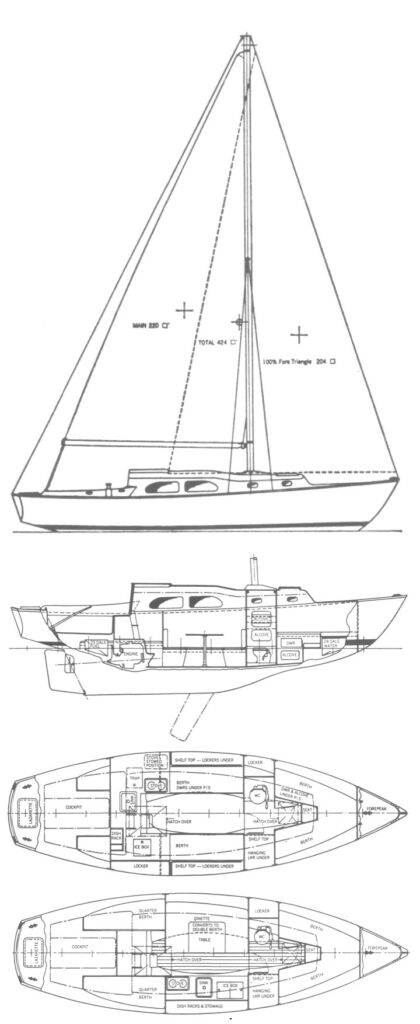

In 1970 (model shown here), a number of minor changes were made to the rig and interior.
