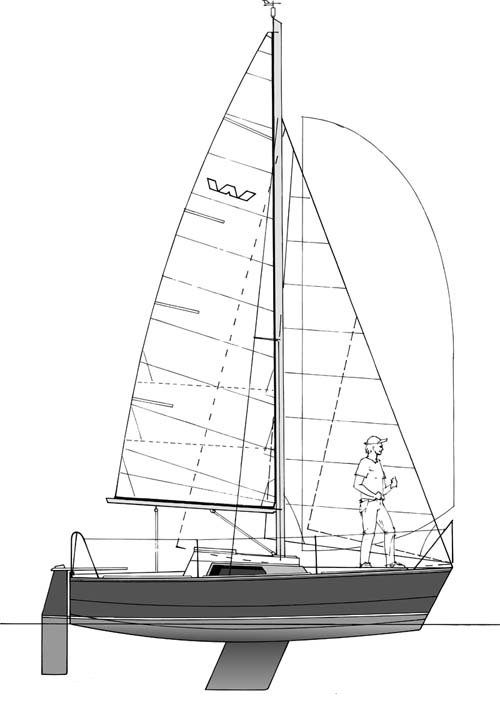

WAARSCHIP 570
• Designed by K.T. Kremer
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Fractional Sloop
Construction:
Plywood
First Built:
1976
Last Built:
1995
Number Built:
618
Dimensions
Length Overall (LOA):
5.70 m
Length Waterline (LWL):
5.00 m
Beam:
2.45 m
Draft (Max):
1.00 m
Max Height:
9.10 m
Weight & Ballast
Displacement:
750 kg
Ballast:
275 kg
Sail Plan
Mainsail Area:
10.12 m²
Total Sail Area (calculated):
10.12 m²
Sail Area (reported):
23.50 m²
P (Mainsail Hoist):
8.10 m
E (Boom Length):
2.50 m
Engine & Systems
Performance Ratios
Hull Speed:
5.43 knots
SA/Displacement (Calculated):
12.26
SA/Displacement (Reported):
29.01
Ballast/Disp Ratio:
36.66%
Displacement/Length:
167.30
Comfort Ratio:
9.30
Capsize Screening:
2.72
S-Number:
2.44
