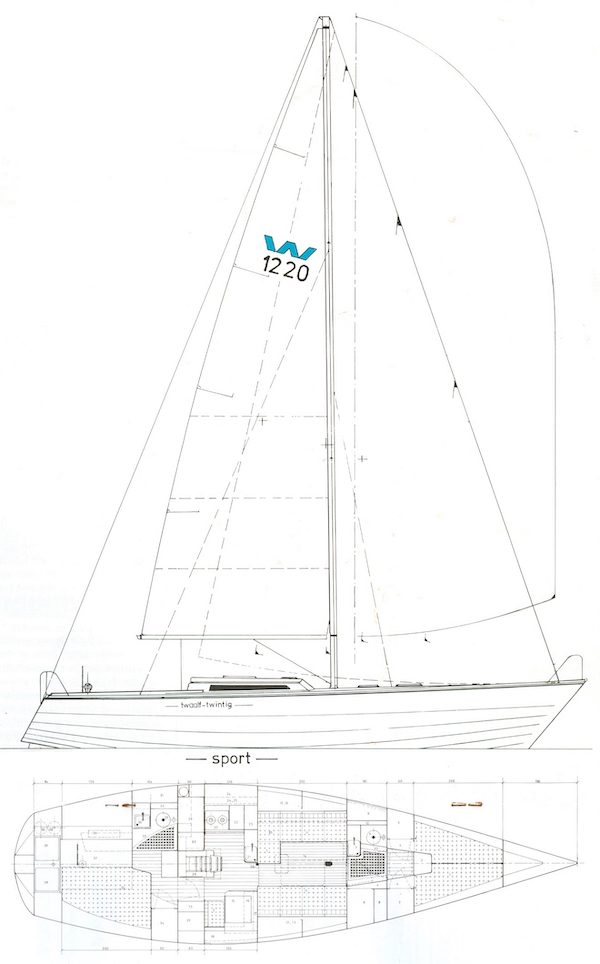

WAARSCHIP 1220
Built by Waarschip (NL)
• Designed by K. Kremer
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
Wood
First Built:
1983
Dimensions
Length Overall (LOA):
13.00 m
Length Waterline (LWL):
10.80 m
Beam:
3.60 m
Draft (Max):
2.20 m
Max Height:
16.80 m
Weight & Ballast
Displacement:
6,500 kg
Ballast:
3,500 kg
Sail Plan
Mainsail Area:
43.16 m²
Total Sail Area (calculated):
43.16 m²
Sail Area (reported):
84.50 m²
P (Mainsail Hoist):
15.70 m
E (Boom Length):
5.50 m
Engine & Systems
Performance Ratios
Hull Speed:
7.98 knots
SA/Displacement (Calculated):
12.39
SA/Displacement (Reported):
24.76
Ballast/Disp Ratio:
53.85%
Displacement/Length:
143.84
Comfort Ratio:
21.98
Capsize Screening:
1.95
S-Number:
2.73
