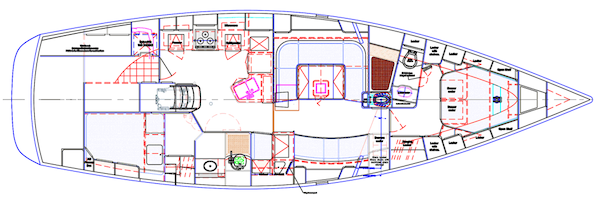

VOYAGER 480 (PASSPORT)
Built by Passport Yachts Inc. (TAIWAN)
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Solent
Construction:
FG
First Built:
2016
Dimensions
Length Overall (LOA):
14.78 m
Length Waterline (LWL):
13.41 m
Beam:
4.62 m
Draft (Max):
1.98 m
Weight & Ballast
Displacement:
17,463 kg
Ballast:
6,350 kg
Ballast Type:
Lead
Sail Plan
Sail Area (reported):
116.13 m²
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
110 HP
Fuel Capacity:
1,136 L
Water Capacity:
757 L
Performance Ratios
Hull Speed:
8.89 knots
SA/Displacement (Reported):
17.62
Ballast/Disp Ratio:
36.36%
Displacement/Length:
201.77
Comfort Ratio:
35.16
Capsize Screening:
1.80
Notes
Shoal draft: 5.58 ft / 1.7m
