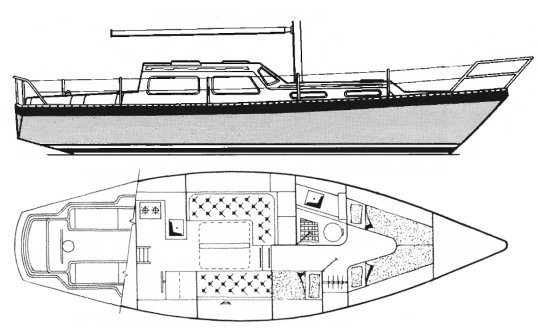

VOYAGER 35 (PRIMROSE)
Built by Garder Marine Ltd.(UK)/Trident Marine
• Designed by Angus Primrose
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1972
Dimensions
Length Overall (LOA):
10.67 m
Length Waterline (LWL):
7.92 m
Beam:
3.20 m
Draft (Max):
1.52 m
Weight & Ballast
Displacement:
5,602 kg
Ballast:
2,313 kg
Ballast Type:
Iron
Sail Plan
Sail Area (reported):
40.60 m²
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
2003
Fuel Capacity:
151 L
Water Capacity:
303 L
Performance Ratios
Hull Speed:
6.83 knots
SA/Displacement (Reported):
13.13
Ballast/Disp Ratio:
41.30%
Displacement/Length:
313.69
Comfort Ratio:
29.02
Capsize Screening:
1.82
Notes
Trident Marine produced three variations of the same Angus Primrose designed 35 foot hull, the WARRIOR (centre cockpit), CHALLENGER (aft cockpit) and VOYAGER (pilothouse) versions.
