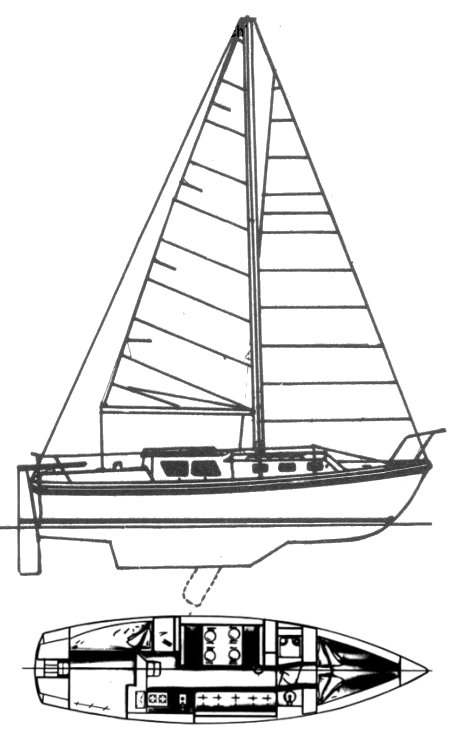

VOYAGER 30 (LUGER)
Built by Luger Industies (USA)
• Designed by Edwin Monk Associates/ Eric White
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1979
Last Built:
1986
Dimensions
Length Overall (LOA):
9.12 m
Length Waterline (LWL):
7.98 m
Beam:
2.44 m
Draft (Max):
1.83 m
Draft (Min):
0.91 m
Headroom:
1.93 m
Max Height:
11.51 m
Weight & Ballast
Displacement:
3,175 kg
Ballast:
1,497 kg
Ballast Type:
Lead
Sail Plan
Sail Area (reported):
33.07 m²
Engine & Systems
Engine Make:
Vetus
Engine Type:
Diesel
Engine Power:
20 HP
Fuel Capacity:
151 L
Water Capacity:
167 L
Performance Ratios
Hull Speed:
6.85 knots
SA/Displacement (Reported):
15.61
Ballast/Disp Ratio:
47.14%
Displacement/Length:
174.36
Comfort Ratio:
24.83
Capsize Screening:
1.68
Notes
Also available as a Ketch. SA: 406 sq. ft., Bridge clearance: 37.75 ft
