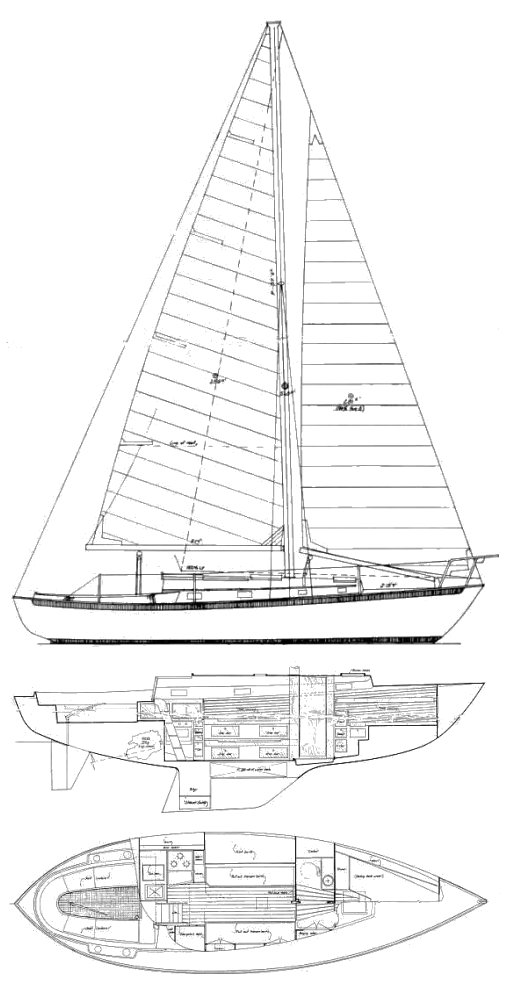

VINEYARD VIXEN 34
Built by Martha's Vineyard Shipyard (USA)
• Designed by T. M. Hale & Assoc.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1975
Dimensions
Length Overall (LOA):
10.46 m
Length Waterline (LWL):
8.36 m
Beam:
3.20 m
Draft (Max):
1.58 m
Headroom:
1.91 m
Weight & Ballast
Displacement:
5,670 kg
Ballast:
2,359 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
26.22 m²
Mainsail Area:
24.39 m²
Total Sail Area (calculated):
50.61 m²
Sail Area (reported):
51.28 m²
I (Fore Triangle Height):
12.47 m
J (Fore Triangle Base):
4.21 m
P (Mainsail Hoist):
11.43 m
E (Boom Length):
4.27 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Power:
23 HP
Fuel Capacity:
106 L
Water Capacity:
170 L
Performance Ratios
Hull Speed:
7.02 knots
SA/Displacement (Calculated):
15.92
SA/Displacement (Reported):
16.46
Ballast/Disp Ratio:
41.60%
Displacement/Length:
270.68
Comfort Ratio:
28.58
Capsize Screening:
1.81
S-Number:
1.92
Notes
Also called VIXEN 34.
