BRADWELL 18
Built by Bradwell/Trident Laminates Ltd. (UK)
• Designed by P. E. Ferguson
General Information
Hull Type:
Swing Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1973
Dimensions
Length Overall (LOA):
5.72 m
Length Waterline (LWL):
5.13 m
Beam:
1.91 m
Draft (Max):
0.99 m
Draft (Min):
0.38 m
Weight & Ballast
Displacement:
544 kg
Ballast:
181 kg
Sail Plan
Sail Area (reported):
13.75 m²
Engine & Systems
Performance Ratios
Hull Speed:
5.50 knots
SA/Displacement (Reported):
21.01
Ballast/Disp Ratio:
33.33%
Displacement/Length:
112.38
Comfort Ratio:
9.27
Capsize Screening:
2.35
Notes

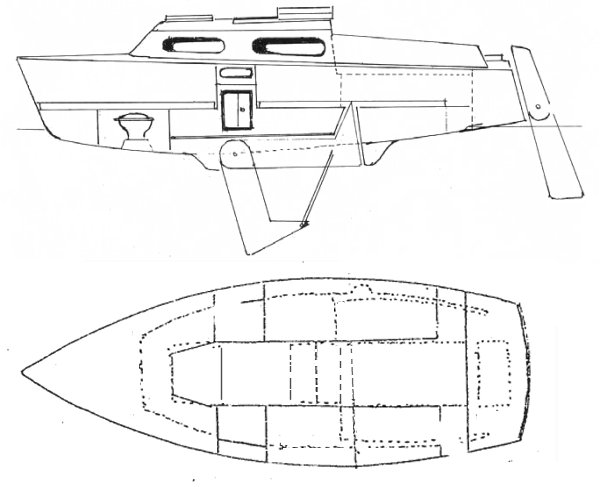

MK I version shown here.
