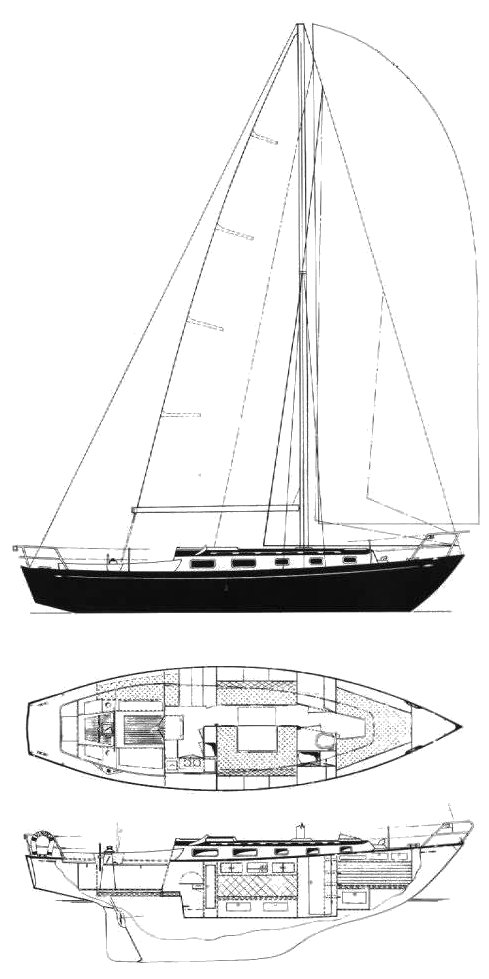

VINDO 50
Built by Vindö Marin AB (SWE)
• Designed by Carl Andersson
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1974
Dimensions
Length Overall (LOA):
10.65 m
Length Waterline (LWL):
8.38 m
Beam:
3.10 m
Draft (Max):
1.58 m
Weight & Ballast
Displacement:
5,207 kg
Ballast:
2,400 kg
Sail Plan
Foresail Area:
24.39 m²
Mainsail Area:
21.81 m²
Total Sail Area (calculated):
46.20 m²
Sail Area (reported):
50.17 m²
I (Fore Triangle Height):
11.77 m
J (Fore Triangle Base):
4.15 m
P (Mainsail Hoist):
10.76 m
E (Boom Length):
4.05 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
MD3
Engine Power:
36 HP
Fuel Capacity:
114 L
Water Capacity:
189 L
Performance Ratios
Hull Speed:
7.03 knots
SA/Displacement (Calculated):
15.38
SA/Displacement (Reported):
17.04
Ballast/Disp Ratio:
46.08%
Displacement/Length:
246.43
Comfort Ratio:
27.17
Capsize Screening:
1.81
S-Number:
2.08
Notes
Also available with as a ketch.
