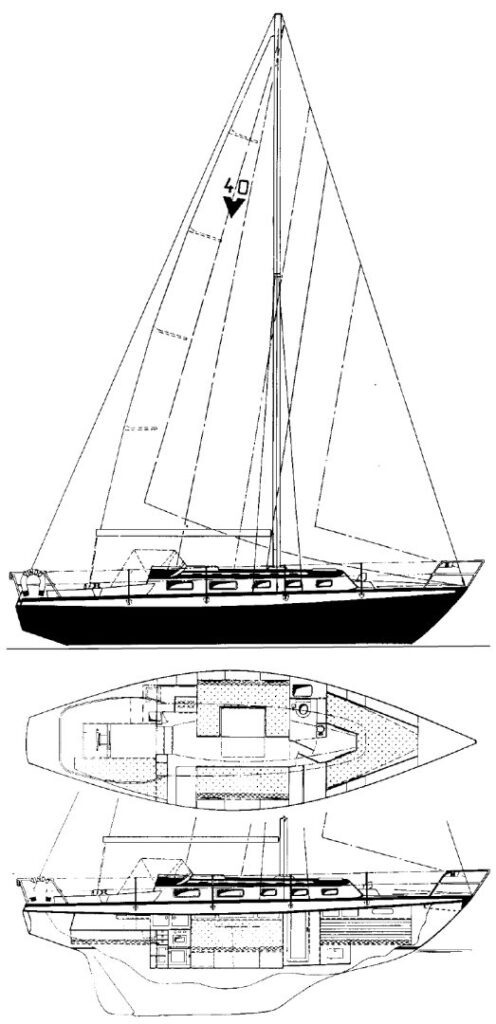

VINDO 40
Built by Nötesund Varv AB (SWE)
• Designed by Carl Andersson
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1970
Last Built:
1982
Number Built:
850
Dimensions
Length Overall (LOA):
9.43 m
Length Waterline (LWL):
7.50 m
Beam:
2.95 m
Draft (Max):
1.40 m
Weight & Ballast
Displacement:
5,200 kg
Ballast:
1,901 kg
Sail Plan
Foresail Area:
21.86 m²
Mainsail Area:
17.78 m²
Total Sail Area (calculated):
39.64 m²
Sail Area (reported):
39.67 m²
I (Fore Triangle Height):
11.50 m
J (Fore Triangle Base):
3.80 m
P (Mainsail Hoist):
10.06 m
E (Boom Length):
3.54 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
MD2B
Engine Power:
25 HP
Performance Ratios
Hull Speed:
6.65 knots
SA/Displacement (Calculated):
13.21
SA/Displacement (Reported):
13.48
Ballast/Disp Ratio:
36.55%
Displacement/Length:
343.81
Comfort Ratio:
32.51
Capsize Screening:
1.72
S-Number:
1.20
