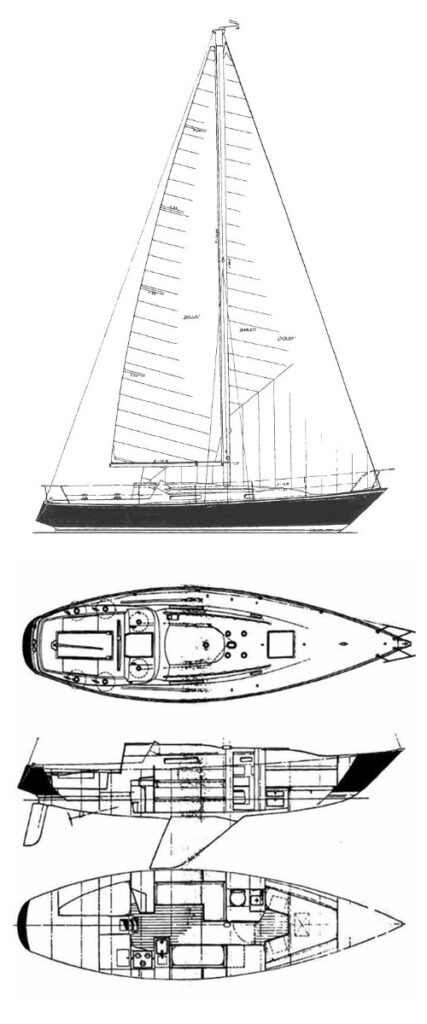

VIKING 34
Built by Ontario Yachts (CAN)
• Designed by C&C
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1973
Last Built:
1982
Dimensions
Length Overall (LOA):
10.24 m
Length Waterline (LWL):
8.28 m
Beam:
3.00 m
Draft (Max):
1.83 m
Weight & Ballast
Displacement:
4,037 kg
Ballast:
2,041 kg
Sail Plan
Foresail Area:
30.59 m²
Mainsail Area:
19.53 m²
Total Sail Area (calculated):
50.12 m²
Sail Area (reported):
50.17 m²
I (Fore Triangle Height):
13.56 m
J (Fore Triangle Base):
4.51 m
P (Mainsail Hoist):
11.98 m
E (Boom Length):
3.26 m
Engine & Systems
Performance Ratios
Hull Speed:
6.98 knots
SA/Displacement (Calculated):
19.77
SA/Displacement (Reported):
20.18
Ballast/Disp Ratio:
50.56%
Displacement/Length:
198.09
Comfort Ratio:
22.52
Capsize Screening:
1.90
S-Number:
3.09
Notes
Updated version of the VIKING 33 with taller rig and deeper Peterson style keel.
