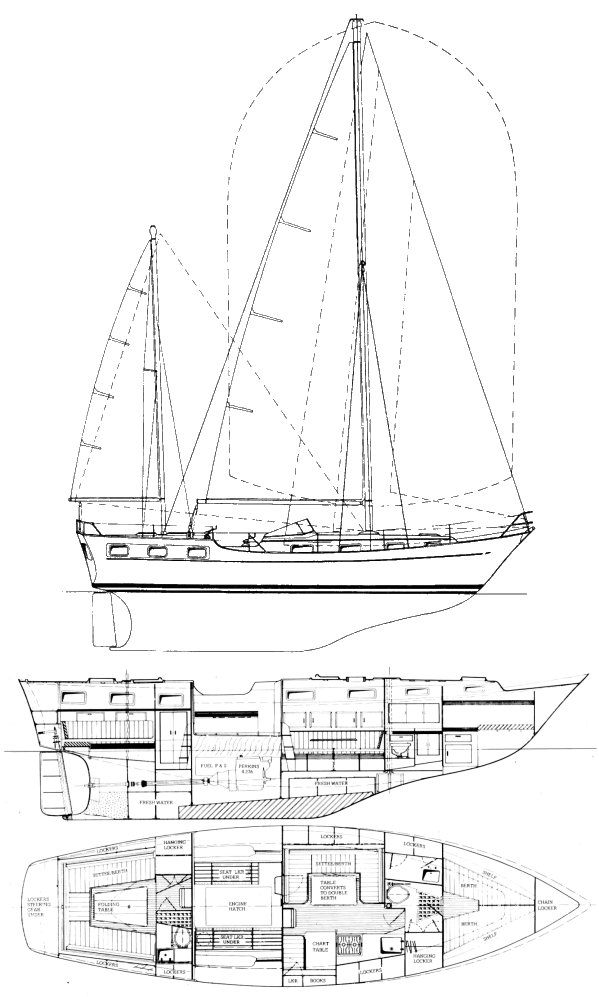

VICTORY 40
Built by Aberdour Marine / Tyler Mouldings Ltd. (UK)
• Designed by E G van de Stadt
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Ketch
Construction:
FG
First Built:
1970
Dimensions
Length Overall (LOA):
12.30 m
Length Waterline (LWL):
9.80 m
Beam:
3.50 m
Draft (Max):
1.50 m
Max Height:
16.15 m
Weight & Ballast
Displacement:
10,400 kg
Ballast:
4,300 kg
Sail Plan
Engine & Systems
Engine Make:
Perkins
Engine Type:
Diesel
Engine Model:
4236
Engine Power:
72 HP
Fuel Capacity:
681 L
Water Capacity:
454 L
Performance Ratios
Hull Speed:
7.60 knots
Ballast/Disp Ratio:
41.35%
Displacement/Length:
308.02
Comfort Ratio:
39.68
Capsize Screening:
1.62
