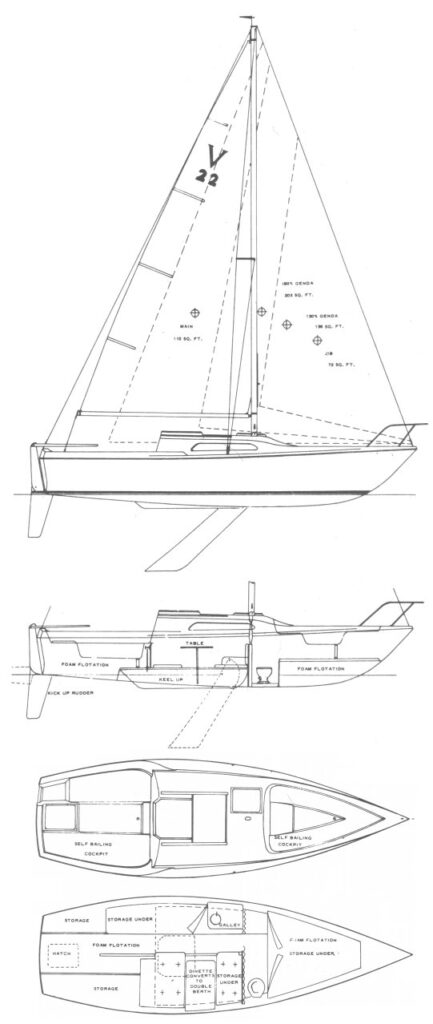

VENTURE 22
Built by MacGregor Yachts Corp. (USA)
• Designed by Roger MacGregor
General Information
Hull Type:
Swing Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1968
Last Built:
1971
Dimensions
Length Overall (LOA):
6.71 m
Length Waterline (LWL):
5.94 m
Beam:
2.23 m
Draft (Max):
1.37 m
Draft (Min):
0.20 m
Weight & Ballast
Displacement:
726 kg
Ballast:
215 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
10.41 m²
Mainsail Area:
9.89 m²
Total Sail Area (calculated):
20.30 m²
Sail Area (reported):
20.25 m²
I (Fore Triangle Height):
7.52 m
J (Fore Triangle Base):
2.77 m
P (Mainsail Hoist):
6.65 m
E (Boom Length):
2.97 m
Engine & Systems
Performance Ratios
Hull Speed:
5.92 knots
SA/Displacement (Calculated):
25.12
SA/Displacement (Reported):
25.55
Ballast/Disp Ratio:
29.69%
Displacement/Length:
96.33
Comfort Ratio:
8.59
Capsize Screening:
2.51
S-Number:
5.67
Notes
Besides some of the basic hardware, and slight variations in rig dimensions, the VENTURE 22, VENTURE 222, and MACGREGOR 22 are all very similar.
