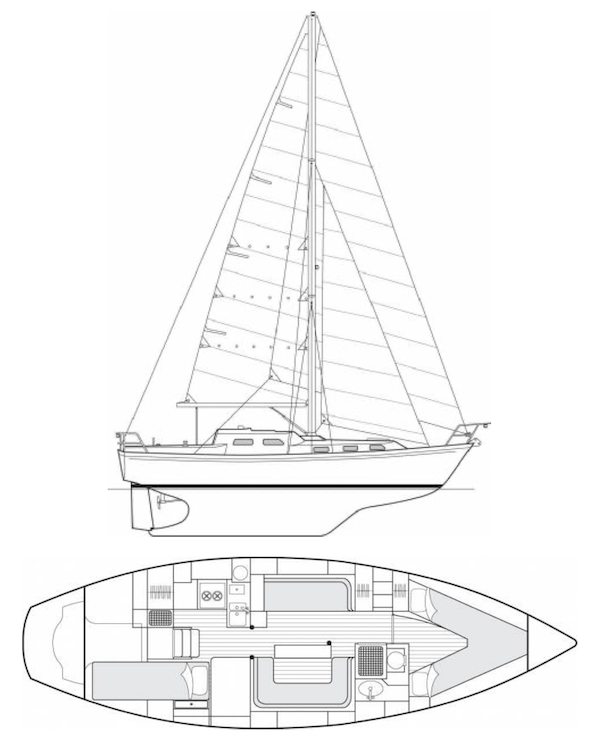

VANCOUVER 34 CLASSIC
Built by Northshore Yachts Ltd. (UK)
• Designed by Robert B Harris
General Information
Hull Type:
Long Keel
Rigging Type:
Cutter
Construction:
GRP
First Built:
1991
Last Built:
2005
Number Built:
122
Dimensions
Length Overall (LOA):
10.44 m
Length Waterline (LWL):
8.38 m
Beam:
3.20 m
Draft (Max):
1.45 m
Max Height:
14.17 m
Weight & Ballast
Displacement:
6,350 kg
Ballast:
2,722 kg
Ballast Type:
Cast iron
Sail Plan
Sail Area (reported):
55.74 m²
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
3GM30
Engine Power:
27 HP
Fuel Capacity:
151 L
Water Capacity:
189 L
Performance Ratios
Hull Speed:
7.03 knots
SA/Displacement (Reported):
16.59
Ballast/Disp Ratio:
42.86%
Displacement/Length:
300.53
Comfort Ratio:
31.98
Capsize Screening:
1.75
Notes
A Northshore development of the V32 providing a larger cockpit, wheel steering and an inboard rudder. The earlier V34Cs dragged their sterns until the move from iron to lead ballast as standard enabled the ballast to be positioned further forward, thus better balancing the additional weight at the stern (i.e. caused by the 2 ft extension).
