VALIANT 32
Built by Valiant Yachts (USA)
• Designed by Robert Perry
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Cutter
Construction:
FG
First Built:
1976
Number Built:
65
Dimensions
Length Overall (LOA):
9.75 m
Length Waterline (LWL):
7.92 m
Beam:
3.18 m
Draft (Max):
1.58 m
Weight & Ballast
Displacement:
5,352 kg
Ballast:
2,132 kg
Sail Plan
Foresail Area:
29.26 m²
Mainsail Area:
18.91 m²
Total Sail Area (calculated):
48.17 m²
Sail Area (reported):
48.12 m²
I (Fore Triangle Height):
12.80 m
J (Fore Triangle Base):
4.57 m
P (Mainsail Hoist):
11.28 m
E (Boom Length):
3.35 m
Engine & Systems
Engine Make:
Westerbeke
Engine Type:
Diesel
Engine Model:
L-25
Engine Power:
25 HP
Fuel Capacity:
174 L
Water Capacity:
303 L
Performance Ratios
Hull Speed:
6.83 knots
SA/Displacement (Calculated):
15.74
SA/Displacement (Reported):
16.05
Ballast/Disp Ratio:
39.83%
Displacement/Length:
299.72
Comfort Ratio:
28.92
Capsize Screening:
1.83
S-Number:
1.68
Notes

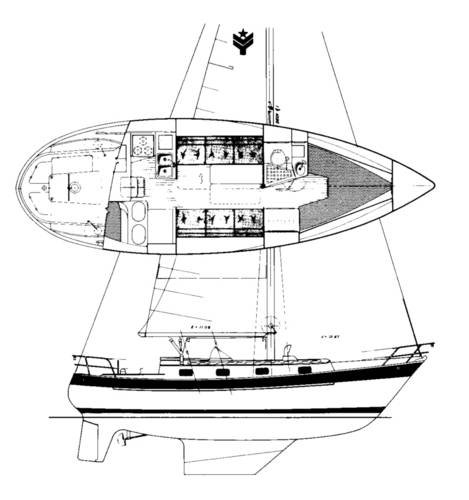

Some later boats came with a sloop rig (as with drawing shown here) with the mast moved forward.
