US 42
Built by US Yachts
• Designed by Stan Huntingford
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1982
Last Built:
1986
Dimensions
Length Overall (LOA):
12.65 m
Length Waterline (LWL):
9.91 m
Beam:
4.27 m
Draft (Max):
2.01 m
Headroom:
1.93 m
Max Height:
17.27 m
Weight & Ballast
Displacement:
10,886 kg
Ballast:
4,763 kg

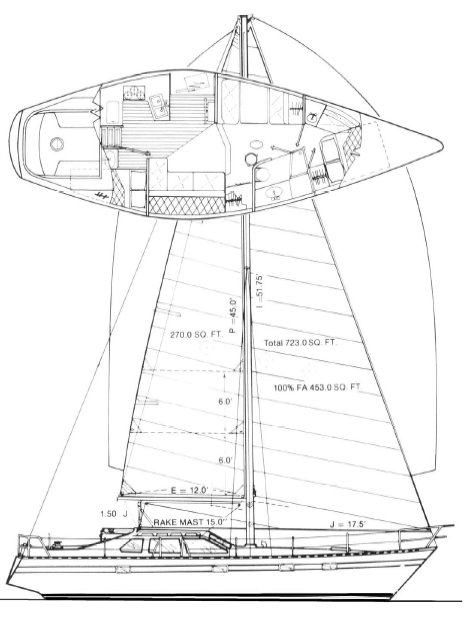

Sail Plan
Foresail Area:
42.07 m²
Mainsail Area:
25.08 m²
Total Sail Area (calculated):
67.15 m²
Sail Area (reported):
67.17 m²
I (Fore Triangle Height):
15.77 m
J (Fore Triangle Base):
5.33 m
P (Mainsail Hoist):
13.72 m
E (Boom Length):
3.66 m
Engine & Systems
Engine Make:
BMC
Engine Type:
Diesel
Engine Power:
60 HP
Fuel Capacity:
265 L
Water Capacity:
568 L
Performance Ratios
Hull Speed:
7.64 knots
SA/Displacement (Calculated):
13.67
SA/Displacement (Reported):
13.96
Ballast/Disp Ratio:
43.75%
Displacement/Length:
312.11
Comfort Ratio:
31.36
Capsize Screening:
1.95
S-Number:
1.42
Notes
Similar to the COOPER 416 and probably from the same tooling.
