US 41
Built by Grampian Marine Ltd. (CAN)
• Designed by William Tripp Jr.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Yawl
Construction:
FG
First Built:
1963
Last Built:
1967
Dimensions
Length Overall (LOA):
12.78 m
Length Waterline (LWL):
9.53 m
Beam:
3.66 m
Draft (Max):
2.95 m
Draft (Min):
1.50 m
Weight & Ballast
Displacement:
11,113 kg
Ballast Type:
Lead
Sail Plan
Sail Area (reported):
76.18 m²
Engine & Systems
Engine Make:
Westerbeke
Engine Type:
Diesel
Engine Model:
4-99
Engine Power:
30 HP
Performance Ratios
Hull Speed:
7.49 knots
SA/Displacement (Reported):
15.62
Displacement/Length:
358.40
Comfort Ratio:
40.16
Capsize Screening:
1.66
Notes

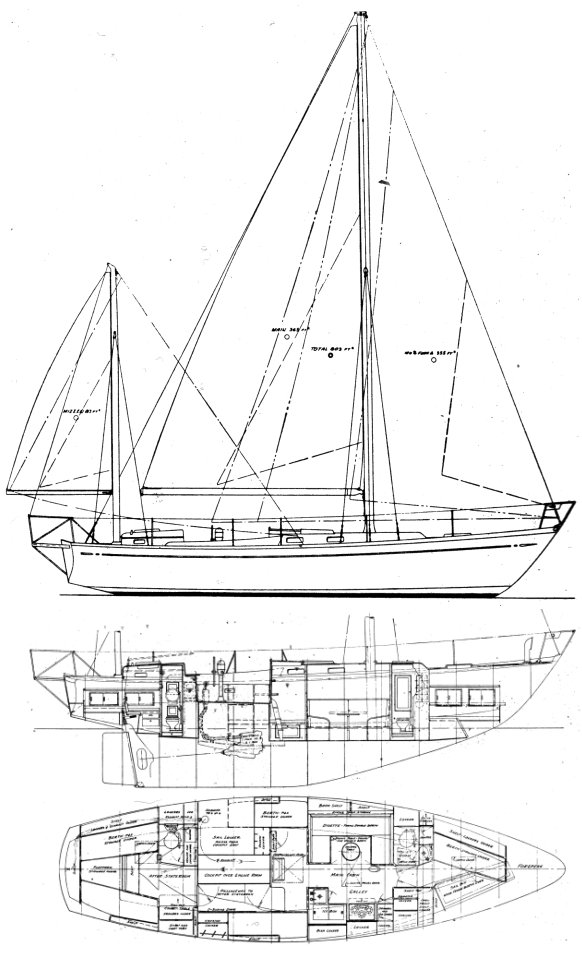

A tandem/mizzen centerboard was an option.(Centerboard details not shown in the drawing).
