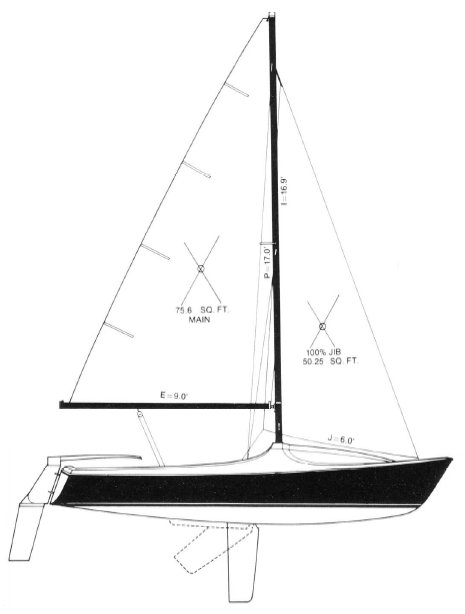

US 18
Built by US Yachts - Bayliner (USA)
• Designed by G. William McVay/Bayliner
General Information
Hull Type:
Swing Keel
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1980
Dimensions
Length Overall (LOA):
5.36 m
Length Waterline (LWL):
4.75 m
Beam:
2.03 m
Draft (Max):
0.98 m
Draft (Min):
0.20 m
Max Height:
6.58 m
Weight & Ballast
Displacement:
238 kg
Sail Plan
Foresail Area:
4.67 m²
Mainsail Area:
7.11 m²
Total Sail Area (calculated):
11.78 m²
Sail Area (reported):
12.45 m²
I (Fore Triangle Height):
5.11 m
J (Fore Triangle Base):
1.83 m
P (Mainsail Hoist):
5.18 m
E (Boom Length):
2.74 m
Engine & Systems
Performance Ratios
Hull Speed:
5.29 knots
SA/Displacement (Calculated):
30.67
SA/Displacement (Reported):
32.99
Displacement/Length:
61.97
Comfort Ratio:
4.00
Capsize Screening:
3.31
S-Number:
7.49
Notes
Similar to the BUCCANEER 180. Originally derived from the MOUETTE 19 by Paceship.
