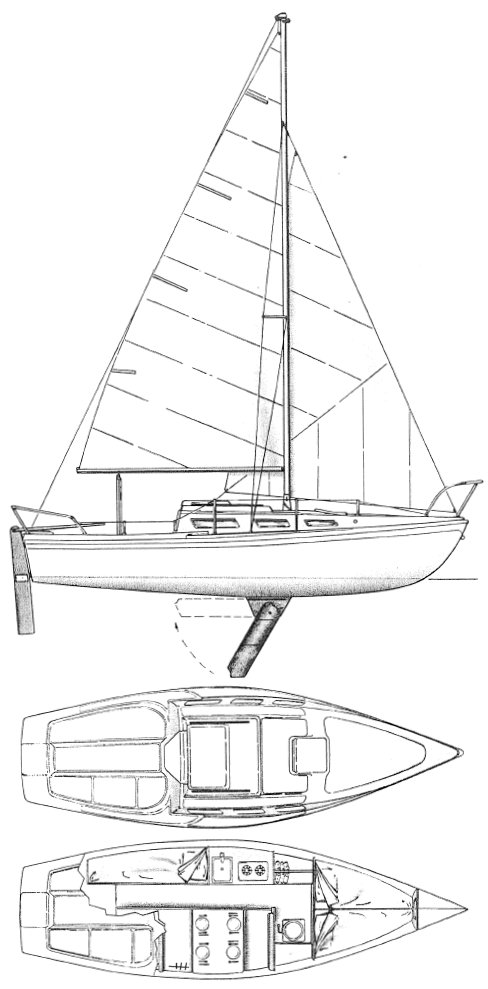

TRADEWINDS 26 (LUGER)
Built by Luger Industries (USA)
General Information
Hull Type:
Swing Keel
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1975
Last Built:
1990
Dimensions
Length Overall (LOA):
7.75 m
Length Waterline (LWL):
7.01 m
Beam:
2.41 m
Draft (Max):
1.68 m
Draft (Min):
0.66 m
Headroom:
1.42 m
Max Height:
9.75 m
Weight & Ballast
Displacement:
1,179 kg
Ballast:
340 kg
Ballast Type:
Cast iron swing keel
Sail Plan
Foresail Area:
13.88 m²
Mainsail Area:
11.00 m²
Total Sail Area (calculated):
24.88 m²
Sail Area (reported):
21.83 m²
I (Fore Triangle Height):
8.93 m
J (Fore Triangle Base):
3.11 m
P (Mainsail Hoist):
7.01 m
E (Boom Length):
3.14 m
Engine & Systems
Performance Ratios
Hull Speed:
6.43 knots
SA/Displacement (Calculated):
22.30
SA/Displacement (Reported):
19.93
Ballast/Disp Ratio:
28.85%
Displacement/Length:
95.40
Comfort Ratio:
10.75
Capsize Screening:
2.31
S-Number:
5.25
Notes
Thanks to Ken Meyer or providing updated information.
