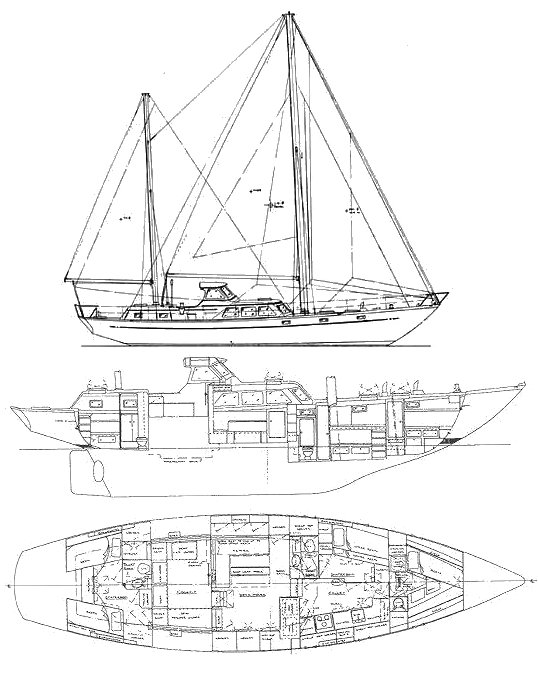

BOOTHBAY EXPLORER (ALDEN)
Built by Hodgdon Brothers (USA)
• Designed by John G. Alden & Associates
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Ketch
Construction:
FG w/balsa cored deck and coach
First Built:
1971
Last Built:
1974
Number Built:
5
Dimensions
Length Overall (LOA):
17.86 m
Length Waterline (LWL):
12.80 m
Beam:
4.80 m
Draft (Max):
1.88 m
Weight & Ballast
Displacement:
24,176 kg
Sail Plan
Sail Area (reported):
125.42 m²
Engine & Systems
Engine Make:
John Deere
Engine Type:
Diesel
Fuel Capacity:
1,514 L
Water Capacity:
1,893 L
Performance Ratios
Hull Speed:
8.68 knots
SA/Displacement (Reported):
15.32
Displacement/Length:
321.17
Comfort Ratio:
44.62
Capsize Screening:
1.68
Notes
Based on the earlier BOOTHBAY CHALLENGER.
