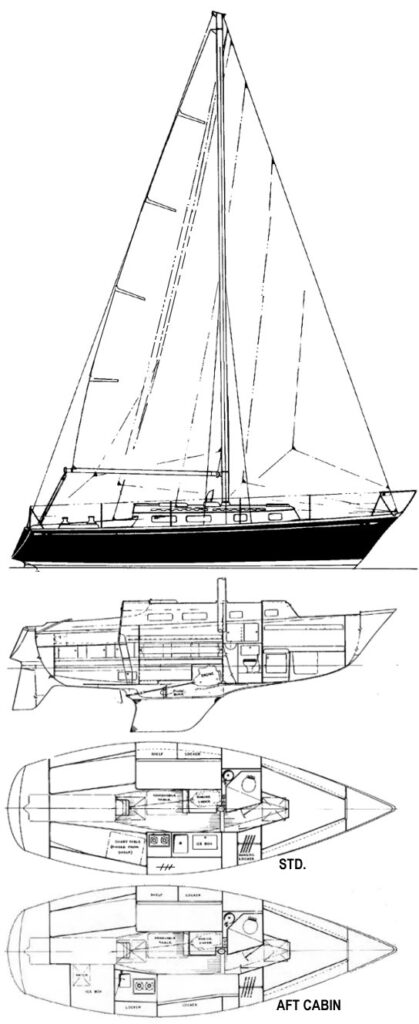

TARTAN 30
Built by Tartan Marine (USA)
• Designed by Sparkman & Stephens
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1970
Last Built:
1978
Number Built:
606
Dimensions
Length Overall (LOA):
9.12 m
Length Waterline (LWL):
7.39 m
Beam:
3.05 m
Draft (Max):
1.50 m
Weight & Ballast
Displacement:
3,969 kg
Ballast:
1,633 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
23.55 m²
Mainsail Area:
18.16 m²
Total Sail Area (calculated):
41.71 m²
Sail Area (reported):
41.71 m²
I (Fore Triangle Height):
11.89 m
J (Fore Triangle Base):
3.96 m
P (Mainsail Hoist):
10.36 m
E (Boom Length):
3.51 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Gas
Engine Model:
Atomic 4
Engine Power:
30 HP
Performance Ratios
Hull Speed:
6.60 knots
SA/Displacement (Calculated):
16.64
SA/Displacement (Reported):
16.97
Ballast/Disp Ratio:
41.14%
Displacement/Length:
273.92
Comfort Ratio:
24.26
Capsize Screening:
1.94
S-Number:
1.96
Notes
S&S (#2016)
