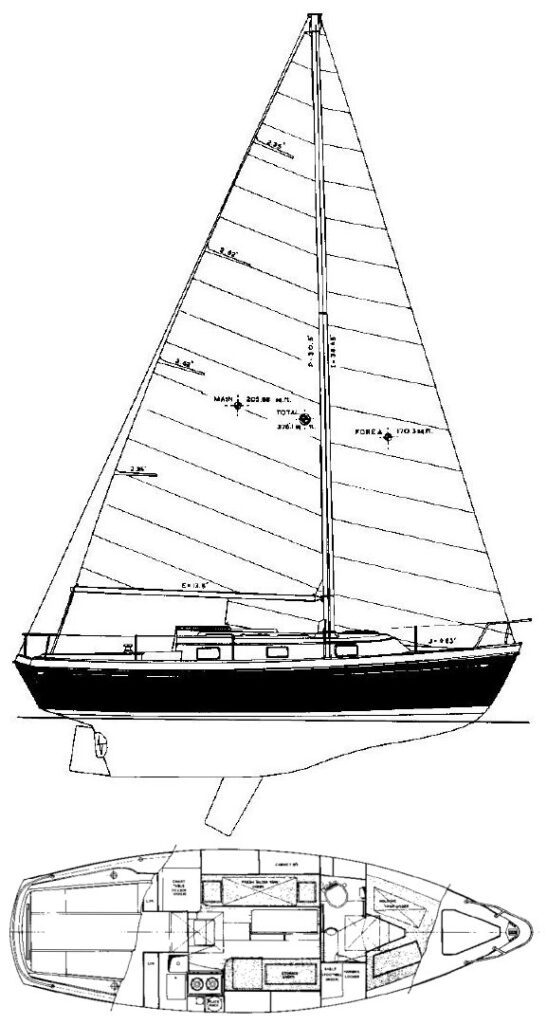

TARTAN 27-2
Built by Tartan Marine (USA)
• Designed by Sparkman & Stephens
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Yawl
Construction:
FG
First Built:
1976
Last Built:
1979
Number Built:
64
Dimensions
Length Overall (LOA):
8.23 m
Length Waterline (LWL):
6.53 m
Beam:
2.63 m
Draft (Max):
1.93 m
Draft (Min):
0.97 m
Weight & Ballast
Displacement:
3,357 kg
Ballast:
1,089 kg
Sail Plan
Foresail Area:
15.82 m²
Mainsail Area:
19.13 m²
Total Sail Area (calculated):
34.95 m²
Sail Area (reported):
38.37 m²
I (Fore Triangle Height):
10.56 m
J (Fore Triangle Base):
3.00 m
P (Mainsail Hoist):
9.30 m
E (Boom Length):
4.11 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Gas
Engine Model:
Atomic 4
Fuel Capacity:
76 L
Water Capacity:
114 L
Performance Ratios
Hull Speed:
6.20 knots
SA/Displacement (Calculated):
15.59
SA/Displacement (Reported):
17.46
Ballast/Disp Ratio:
32.43%
Displacement/Length:
336.14
Comfort Ratio:
28.05
Capsize Screening:
1.77
S-Number:
1.42
Notes
Later version of the orginal TARTAN 27. Most notable differences from original: Raised sheer line, leveled out coach roof. Other modifications to interior.
