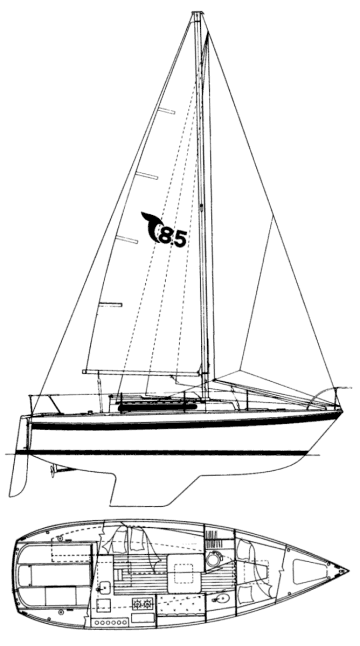

TANZER 8.5
Built by Tanzer Industries Ltd. (CAN)
• Designed by Johann Tanzer
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1978
Dimensions
Length Overall (LOA):
8.51 m
Length Waterline (LWL):
7.24 m
Beam:
2.90 m
Draft (Max):
1.32 m
Weight & Ballast
Displacement:
3,357 kg
Ballast:
1,361 kg
Sail Plan
Foresail Area:
19.13 m²
Mainsail Area:
12.33 m²
Total Sail Area (calculated):
31.46 m²
Sail Area (reported):
31.49 m²
I (Fore Triangle Height):
10.82 m
J (Fore Triangle Base):
3.54 m
P (Mainsail Hoist):
8.99 m
E (Boom Length):
2.74 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Fuel Capacity:
57 L
Water Capacity:
57 L
Performance Ratios
Hull Speed:
6.53 knots
SA/Displacement (Calculated):
14.03
SA/Displacement (Reported):
14.33
Ballast/Disp Ratio:
40.54%
Displacement/Length:
246.60
Comfort Ratio:
22.80
Capsize Screening:
1.95
S-Number:
1.93
