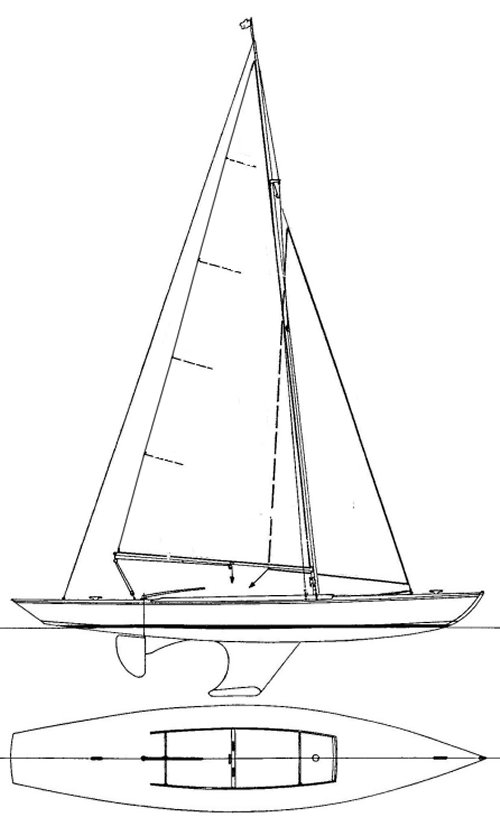

AILE
• Designed by Larl Linblöm
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Fractional Sloop
Construction:
Wood/FG/single chine
First Built:
1935
Number Built:
500
Dimensions
Length Overall (LOA):
7.10 m
Length Waterline (LWL):
5.90 m
Beam:
1.60 m
Draft (Max):
1.04 m
Weight & Ballast
Displacement:
450 kg
Ballast:
200 kg
Sail Plan
Sail Area (reported):
18.67 m²
Engine & Systems
Performance Ratios
Hull Speed:
5.90 knots
SA/Displacement (Reported):
32.39
Ballast/Disp Ratio:
44.46%
Displacement/Length:
61.03
Comfort Ratio:
8.19
Capsize Screening:
2.11
Notes
Spinnaker area: 27m2/290 sq.ft.
