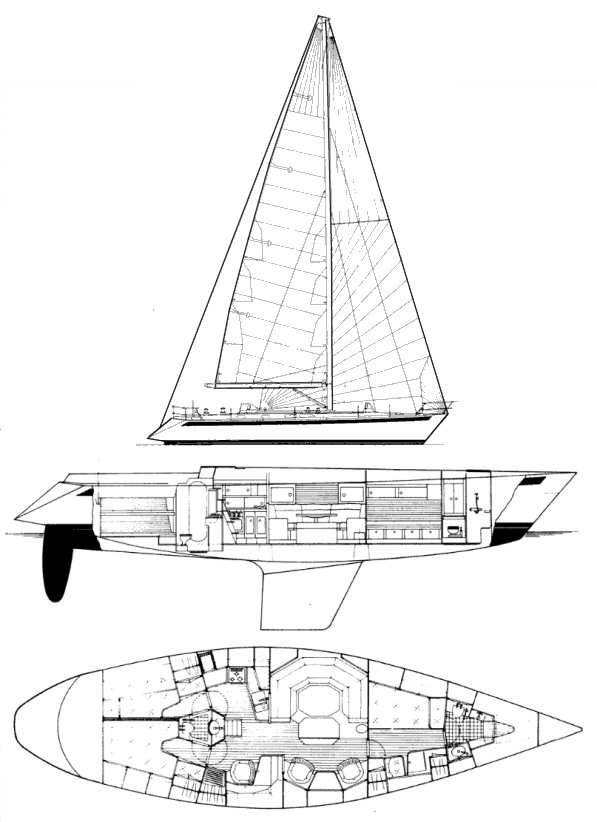

SWEDEN YACHTS 50
Built by Sweden Yachts
• Designed by Peter Norlin and Jens Ostmann
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1987
Last Built:
1996
Number Built:
19
Dimensions
Length Overall (LOA):
15.24 m
Length Waterline (LWL):
12.60 m
Beam:
4.34 m
Draft (Max):
2.59 m
Weight & Ballast
Displacement:
14,288 kg
Ballast:
5,806 kg
Sail Plan
Foresail Area:
59.92 m²
Mainsail Area:
49.95 m²
Total Sail Area (calculated):
109.87 m²
Sail Area (reported):
109.90 m²
I (Fore Triangle Height):
19.99 m
J (Fore Triangle Base):
6.00 m
P (Mainsail Hoist):
17.88 m
E (Boom Length):
5.59 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
31 TMD
Engine Power:
100 HP
Performance Ratios
Hull Speed:
8.61 knots
SA/Displacement (Calculated):
18.66
SA/Displacement (Reported):
19.06
Ballast/Disp Ratio:
40.63%
Displacement/Length:
199.19
Comfort Ratio:
32.21
Capsize Screening:
1.81
S-Number:
2.95
Notes
Shoal draft wing keel: 6.5'
