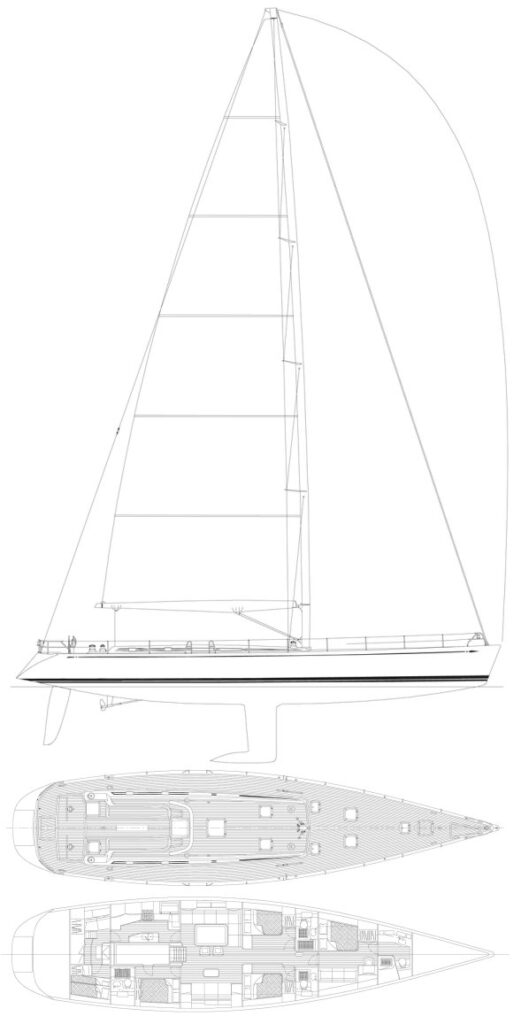

SWAN 80
Built by Nautor (FIN)
• Designed by German Frers
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1999
Last Built:
2004
Number Built:
8
Dimensions
Length Overall (LOA):
24.90 m
Length Waterline (LWL):
21.12 m
Beam:
5.82 m
Draft (Max):
4.20 m
Weight & Ballast
Displacement:
36,700 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
150.39 m²
Mainsail Area:
157.47 m²
Total Sail Area (calculated):
307.86 m²
Sail Area (reported):
307.88 m²
I (Fore Triangle Height):
32.00 m
J (Fore Triangle Base):
9.40 m
P (Mainsail Hoist):
30.30 m
E (Boom Length):
10.39 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
4LHA-STE
Engine Power:
240 HP
Fuel Capacity:
1,999 L
Water Capacity:
1,200 L
Performance Ratios
Hull Speed:
11.15 knots
SA/Displacement (Calculated):
27.88
SA/Displacement (Reported):
28.48
Displacement/Length:
108.58
Comfort Ratio:
33.75
Capsize Screening:
1.77
S-Number:
5.76
Notes
Assym.spinnaker 526 m²/5664 sq.ft.
