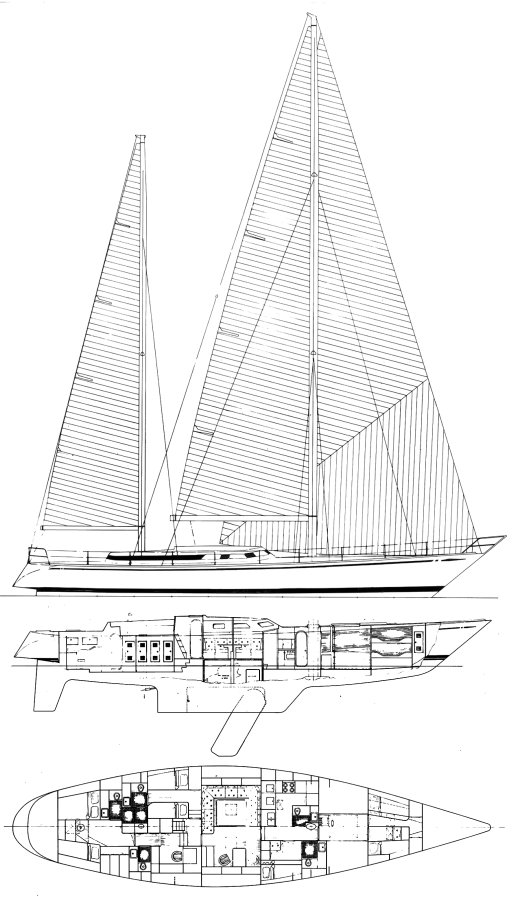

SWAN 76 DH
Built by Nautor
• Designed by Sparkman & Stephens
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Ketch
Construction:
FG
First Built:
1979
Last Built:
1981
Number Built:
5
Dimensions
Length Overall (LOA):
23.26 m
Length Waterline (LWL):
18.69 m
Beam:
5.80 m
Draft (Max):
3.66 m
Draft (Min):
2.29 m
Weight & Ballast
Displacement:
47,854 kg
Ballast:
13,517 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
112.26 m²
Mainsail Area:
79.26 m²
Total Sail Area (calculated):
191.52 m²
Sail Area (reported):
227.52 m²
I (Fore Triangle Height):
26.59 m
J (Fore Triangle Base):
8.44 m
P (Mainsail Hoist):
24.08 m
E (Boom Length):
6.58 m
Engine & Systems
Engine Make:
Mercedes Benz
Engine Type:
Diesel
Engine Model:
OM 402
Engine Power:
200 HP
Performance Ratios
Hull Speed:
10.49 knots
SA/Displacement (Calculated):
14.53
SA/Displacement (Reported):
17.64
Ballast/Disp Ratio:
28.25%
Displacement/Length:
204.17
Comfort Ratio:
49.01
Capsize Screening:
1.61
S-Number:
2.40
Notes
Deckhouse cruising version (Keel/CB). There was also a flush deck, fin keeled, 'maxi' racing version.
